SKU: CYNB-32-S

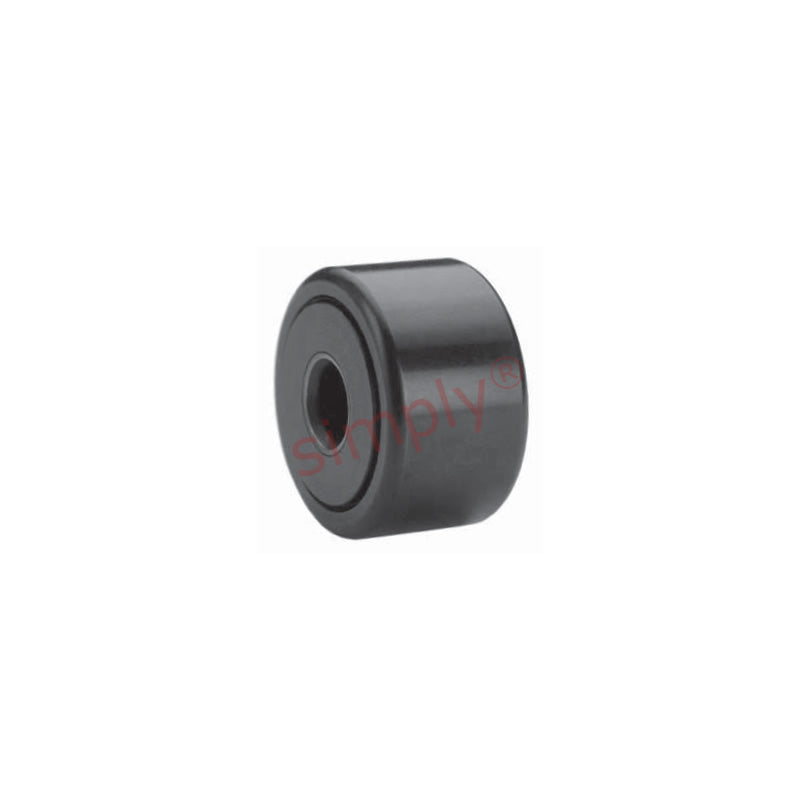

Major Brand CYNB32S Sealed Crowned Cam Yoke Roller 0.3125x1x0.6875 inch
Major Brand CYNB32S Sealed Crowned Cam Yoke Roller 0.3125x1x0.6875 inch
Regular price
£27.24
ex VAT£32.69inc. VAT
Regular price
Sale price
£27.24
ex VAT£32.69
inc. VAT
Equivalent to: CCYR-1-S CY-32-L YR-1-XC YCRSC-16
In stock
Price Break
3+
£24.24
4+
£22.88
9+
£22.61
19+
£22.34
29+
£22.06
39+
£21.79
49+
£20.43
59+
£20.16
249+
£19.89
499+
£19.61
999+
£19.07
Description
Description
| Cam Yoke Roller: These bearings are easily mounted and ideally suited for many Cam or Track roller applications with moderate loading and shock. The bearings are sealed to help prevent contamination and retain lubrication. |
Equivalent: CCYR-1-S CY-32-L YR-1-XC YCRSC-16
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 25.4mm = 1 inch
- Width:
- 17.46mm = 0.687 (11/16) inch
Technical
Technical
| A | 1 inch |
|---|---|
| B | 0.3125 inch |
| C | 0.625 inch |
| D | 0.6875 inch |
| E | 23/32 inch |
| F | 3/32 inch |
| Recommended shaft diameter | 0.3122 inch |
| Max static capacity | 6120 lbs |
| Basic dynamic rating | 2225 lbs |
