SKU: CUC207-20

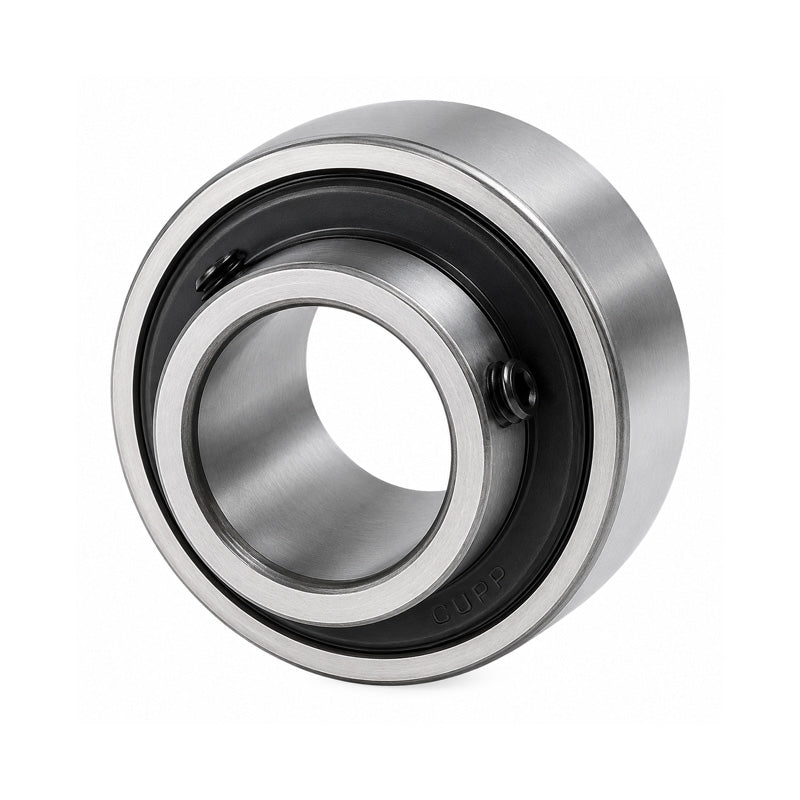

CUC207-20 Imperial Cylindrical Bearing Insert with 1-1/4 inch Bore 72mm Outside Dia - Allow 2-3 Days
CUC207-20 Imperial Cylindrical Bearing Insert with 1-1/4 inch Bore 72mm Outside Dia - Allow 2-3 Days
Regular price
£7.74
ex VAT£9.29inc. VAT
Regular price
Sale price
£7.74
ex VAT£9.29
inc. VAT
Equivalent to: UR207-20 RB207-20
In stock
Price Break
3+
£7.66
4+
£7.35
9+
£7.20
19+
£6.97
49+
£6.81
99+
£6.42
499+
£5.42
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR207-20 RB207-20
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 72mm
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| D | 72mm |
| Bi | 42.9mm |
| Be | 20mm |
| N | 17.5mm |
| M | 25.4mm |
| G | 7mm |
| ds | M8x1, 5/16-24UNF |
| Dynamic Load | 25700 N |
| Static Load | 15300 N |
| Weight | 0.54 kg |
