SKU: CUC207

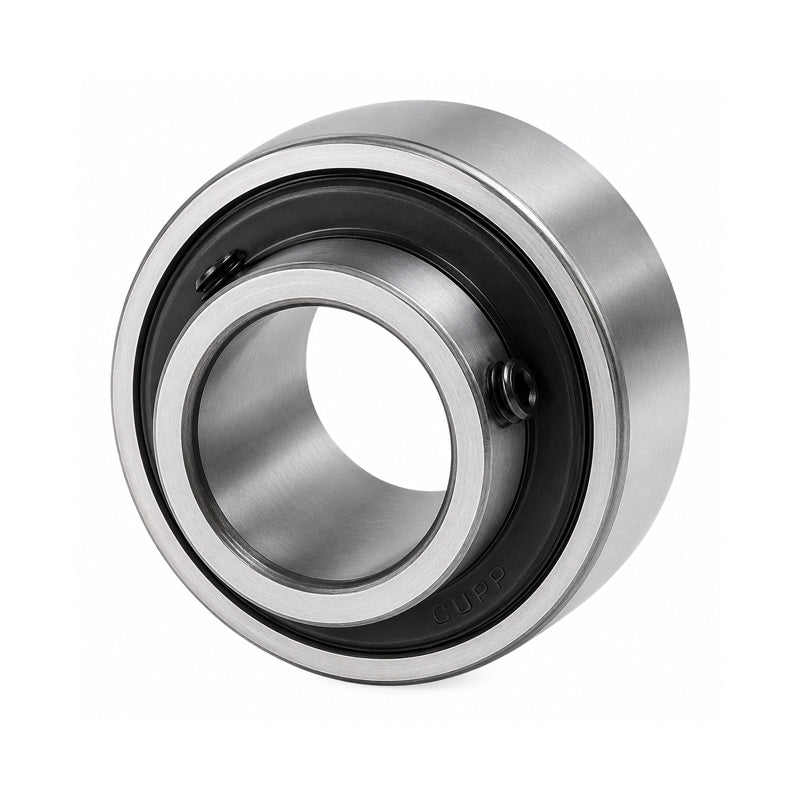

CUC207 Metric Cylindrical Bearing Insert with 35mm Bore 72mm Outside Dia
CUC207 Metric Cylindrical Bearing Insert with 35mm Bore 72mm Outside Dia
Regular price
£10.66
ex VAT£12.79inc. VAT
Regular price
Sale price
£10.66
ex VAT£12.79
inc. VAT
Equivalent to: UR207 RB207
In stock
Price Break
3+
£9.49
4+
£8.95
9+
£8.85
19+
£8.74
49+
£8.63
99+
£8.53
499+
£7.99
999+
£7.89
1999+
£7.78
2999+
£7.67
4999+
£7.46
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR207 RB207
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| Bi | 42.9mm |
| Be | 20mm |
| N | 17.5mm |
| M | 25.4mm |
| G | 7mm |
| ds | M8x1, 5/16-24UNF |
| Dynamic Load | 25700 N |
| Static Load | 15300 N |
| Weight | 0.48 kg |
