SKU: CUC206

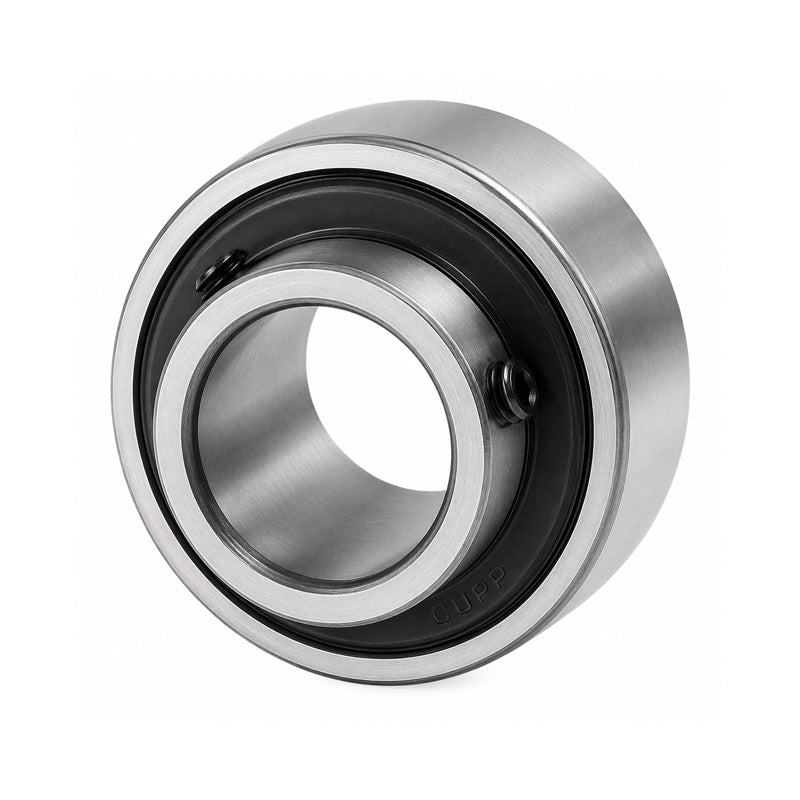

CUC206 Metric Cylindrical Bearing Insert with 30mm Bore 62mm Outside Dia
CUC206 Metric Cylindrical Bearing Insert with 30mm Bore 62mm Outside Dia
Regular price
£7.72
ex VAT£9.26inc. VAT
Regular price
Sale price
£7.72
ex VAT£9.26
inc. VAT
Equivalent to: UR206 RB206
In stock
Price Break
3+
£6.87
4+
£6.48
9+
£6.41
19+
£6.33
49+
£6.25
99+
£6.18
499+
£5.79
999+
£5.71
1999+
£5.64
2999+
£5.56
4999+
£5.40
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR206 RB206
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| Bi | 38.1mm |
| Be | 19mm |
| N | 15.9mm |
| M | 22.2mm |
| G | 5mm |
| ds | M6x1, 1/4-28UNF |
| Dynamic Load | 19500 N |
| Static Load | 11300 N |
| Weight | 0.32 kg |
