SKU: CUC205

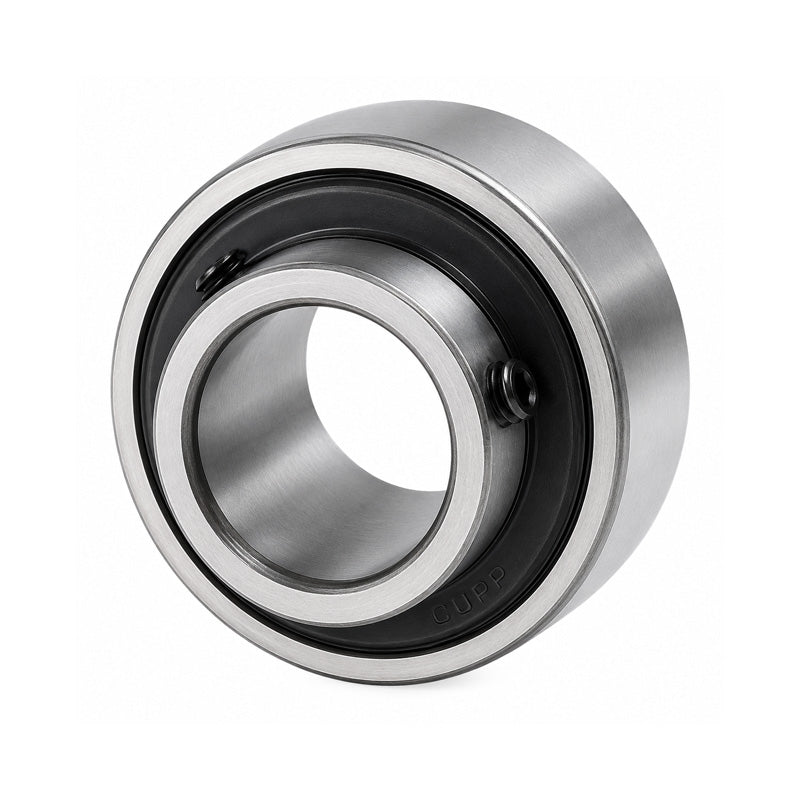

CUC205 Metric Cylindrical Bearing Insert with 25mm Bore 52mm Outside Dia
CUC205 Metric Cylindrical Bearing Insert with 25mm Bore 52mm Outside Dia
Regular price
£6.55
ex VAT£7.86inc. VAT
Regular price
Sale price
£6.55
ex VAT£7.86
inc. VAT
Equivalent to: UR205 RB205
In stock
Price Break
3+
£5.83
4+
£5.50
9+
£5.44
19+
£5.37
49+
£5.30
99+
£5.24
499+
£4.91
999+
£4.85
1999+
£4.78
2999+
£4.71
4999+
£4.58
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR205 RB205
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| Bi | 34.1mm |
| Be | 17mm |
| N | 14.3mm |
| M | 19.8mm |
| G | 5mm |
| ds | M6x1, 1/4-28UNF |
| Dynamic Load | 140000 N |
| Static Load | 7850 N |
| Weight | 0.2 kg |
