SKU: CUC204

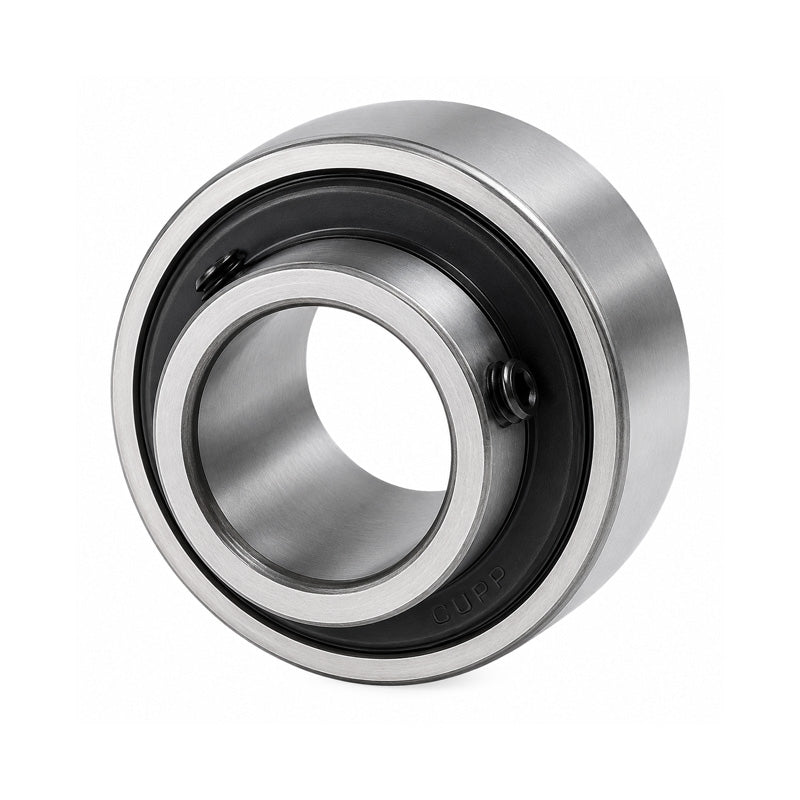

CUC204 Metric Cylindrical Bearing Insert with 20mm Bore 47mm Outside Dia
CUC204 Metric Cylindrical Bearing Insert with 20mm Bore 47mm Outside Dia
Regular price
£6.02
ex VAT£7.22inc. VAT
Regular price
Sale price
£6.02
ex VAT£7.22
inc. VAT
Equivalent to: UR204 RB204
In stock
Price Break
10+
£5.36
19+
£5.06
29+
£5.00
39+
£4.94
49+
£4.88
74+
£4.82
99+
£4.52
199+
£4.45
249+
£4.39
499+
£4.33
999+
£4.21
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR204 RB204
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 17mm |
| N | 12.7mm |
| M | 18.3mm |
| G | 4.8mm |
| ds | M6x1, 1/4-28UNF |
| Dynamic Load | 12800 N |
| Static Load | 6650 N |
| Weight | 0.16 kg |
