SKU: CSK.17PP.EU

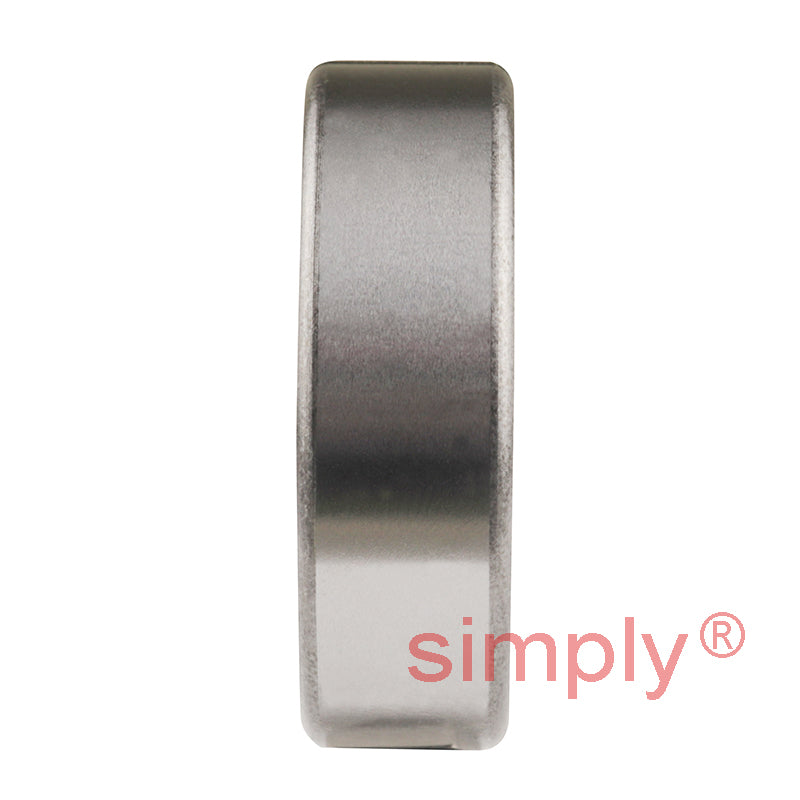

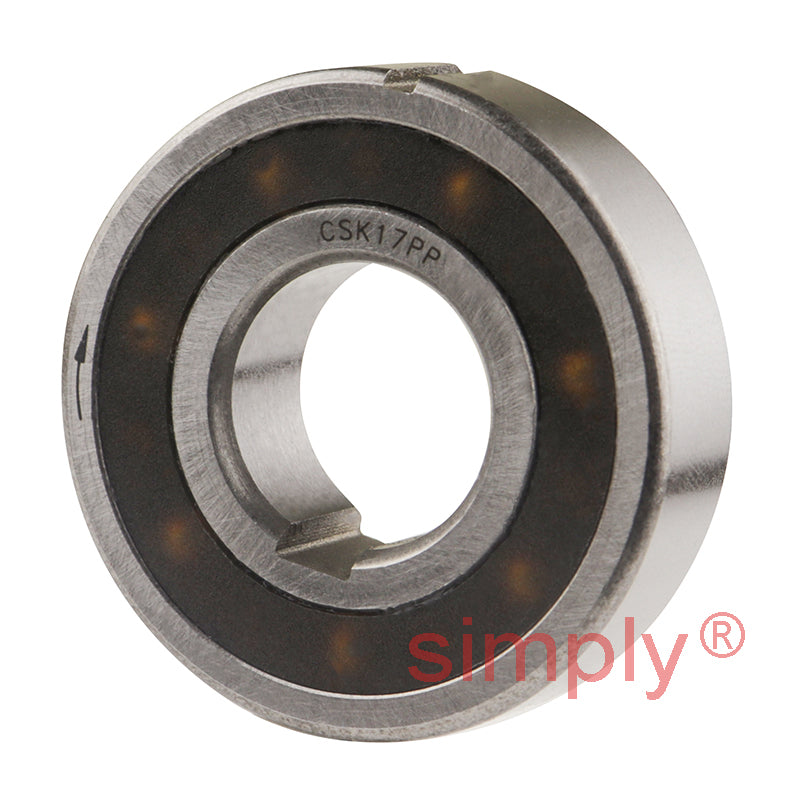

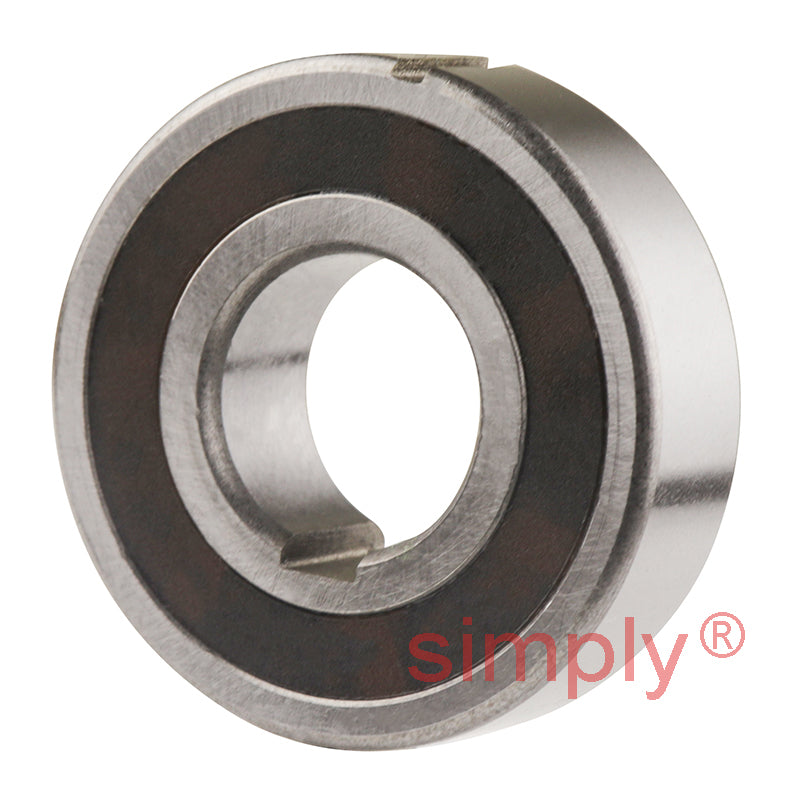

CSK17PP 17mm Sprag Clutch One Way Bearing with Internal and External Keyways 17x40x12mm
CSK17PP 17mm Sprag Clutch One Way Bearing with Internal and External Keyways 17x40x12mm
Regular price
£8.36
ex VAT£10.03inc. VAT
Regular price
Sale price
£8.36
ex VAT£10.03
inc. VAT
In stock
Price Break
10+
£7.44
19+
£7.02
29+
£6.94
39+
£6.86
49+
£6.77
74+
£6.69
99+
£6.27
199+
£6.19
249+
£6.10
499+
£6.02
999+
£5.85
Description
Description
|
CSK Series: This range of clutches can be used as freewheels and can be used in backstop, overrunning or indexing applications. Freewheel bearings are characterised by their ability to turn in one direction only and thus transmit torque whilst having a zero backlash. They are supplied filled with grease and are low maintenance. The torque is transmitted on the inner and outer race by an external key way to the housing and onto the shaft by an internal key way. Operating temperature range: minus 40 deg F to plus 212 deg F or minus 40 deg C to plus 100 deg C Benefits: Cost effective replacement clutch bearing, low maintenance, Internally keyed |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
Technical
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| L | 12mm |
| Torque Tkn | 30 Nm |
| n max | 7350 rpm |
| a min | 5mm |
| k min | 2mm |
| b min | 2mm |
| t min | 1mm |
| Dynamic load C | 7.9 kN |
| Static load Co | 3.8 kN |
| Weight | 0.07 kg |
| Drag Torque Tr | 1.1 Ncm |
