SKU: CSB.207

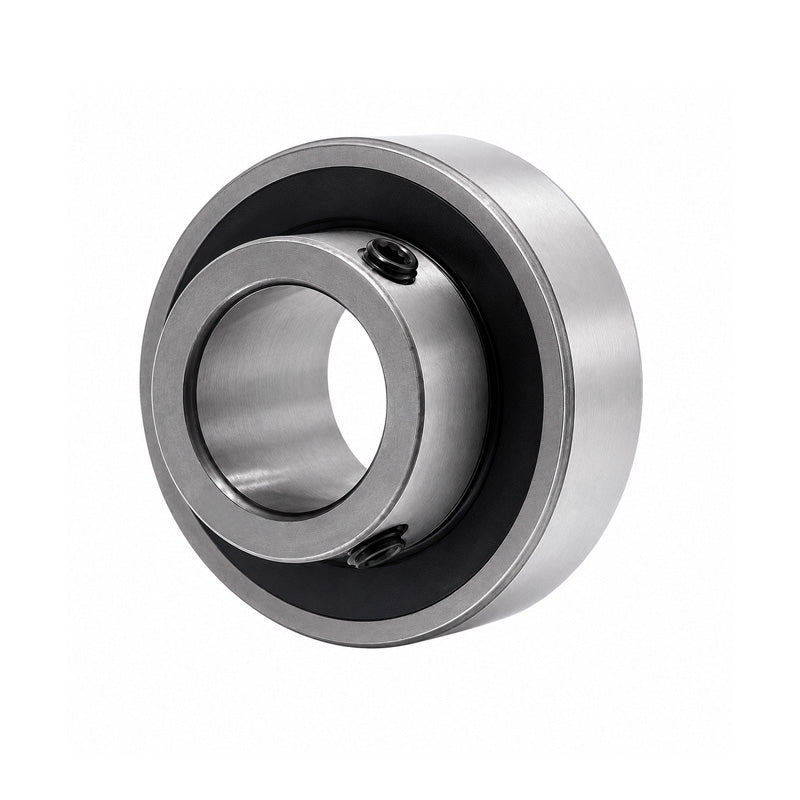

CSB207 Metric Bearing Insert with 35mm Bore 72mm Outside Dia
CSB207 Metric Bearing Insert with 35mm Bore 72mm Outside Dia
Regular price
£13.27
ex VAT£15.92inc. VAT
Regular price
Sale price
£13.27
ex VAT£15.92
inc. VAT
In stock
Price Break
10+
£11.81
19+
£11.15
29+
£11.01
39+
£10.88
49+
£10.75
74+
£10.62
99+
£9.95
199+
£9.82
249+
£9.69
499+
£9.55
999+
£9.29
Couldn't load pickup availability
Description
Description
|
CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Style:
- CSB
- Type:
- Parallel Outer
Technical
Technical
| d | 35mm |
|---|---|
| Be | 17mm |
| D | 72mm |
| Bi | 32mm |
| n | 8.5mm |
| m | 23.5mm |
| G | 6.5mm |
| h | 5.5mm |
| Grub screw | M8X1.0 |
| Weight | 0.42 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
