SKU: CSA.212

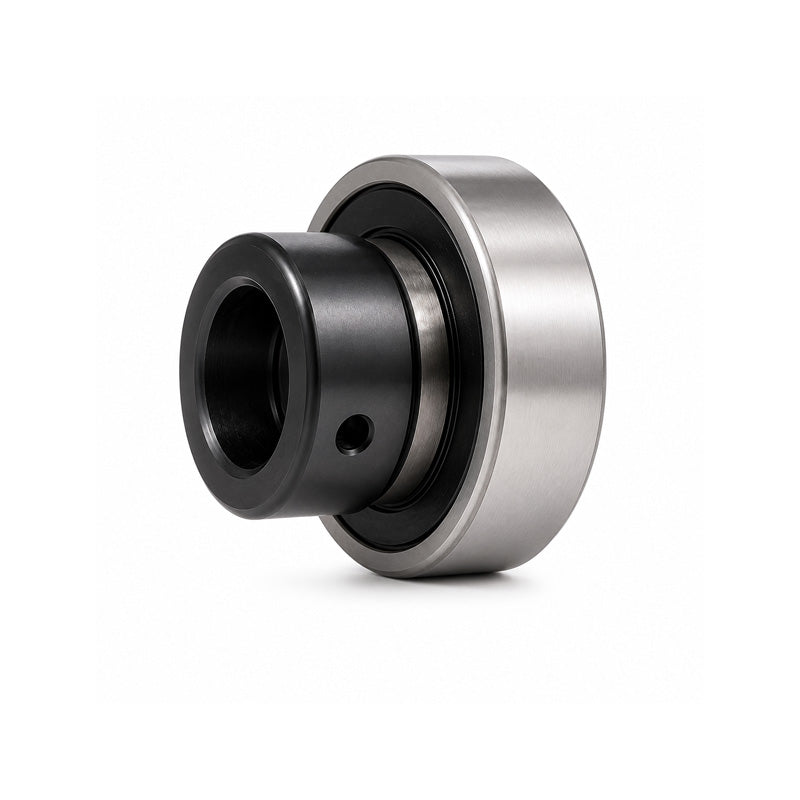

CSA212 Metric Bearing Insert with Locking Collar 60mm Bore 110mm Outside Dia
CSA212 Metric Bearing Insert with Locking Collar 60mm Bore 110mm Outside Dia
Regular price
£37.49
ex VAT£44.99inc. VAT
Regular price
Sale price
£37.49
ex VAT£44.99
inc. VAT
In stock
Price Break
3+
£33.36
4+
£31.49
9+
£31.11
19+
£30.74
49+
£30.36
99+
£29.99
499+
£28.11
999+
£27.74
1999+
£27.36
2999+
£26.99
4999+
£26.24
Share this product
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Style:
- CSA
Technical
Technical
| d | 60mm |
|---|---|
| Be | 24mm |
| D | 110mm |
| z | 33.4mm |
| n | 12mm |
| m | 21.4mm |
| Bi | 53.1mm |
| k | 84.2mm |
| H | 22.3mm |
| G | 8mm |
| h | 8mm |
| Grub screw | M10X1.0 |
| Weight | 1.3 kg |
| Dynamic load | 4850 kgf |
| Static load | 2960 kgf |
