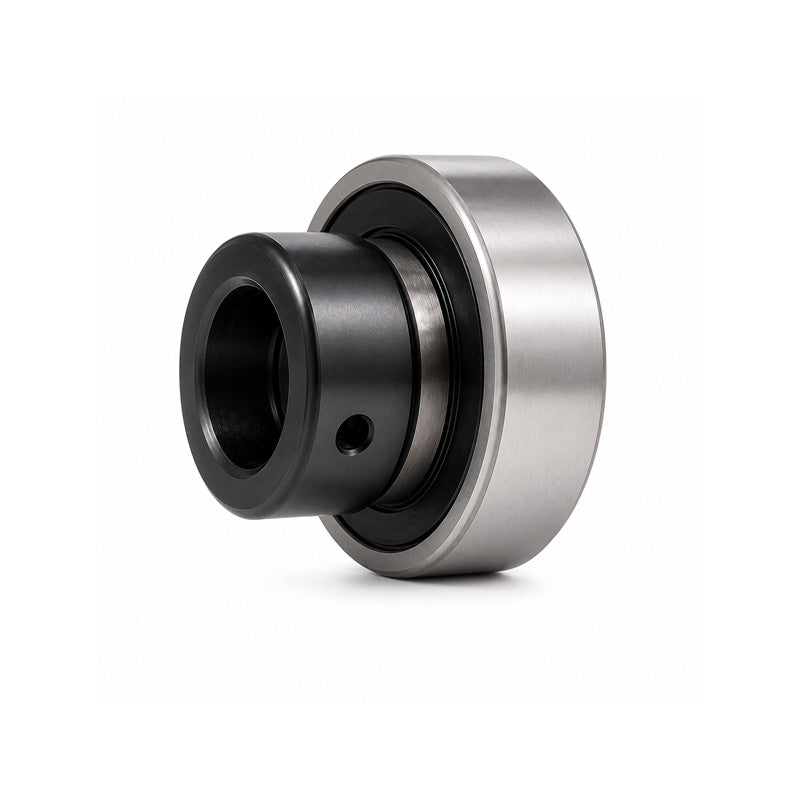

CSA210 Metric Bearing Insert with Locking Collar 50mm Bore 90mm Outside Dia
CSA210 Metric Bearing Insert with Locking Collar 50mm Bore 90mm Outside Dia
Regular price
£28.57
ex VAT£34.28inc. VAT
Regular price
Sale price
£28.57
ex VAT£34.28
inc. VAT
In stock
Price Break
10+
£25.43
19+
£24.00
29+
£23.71
39+
£23.43
49+
£23.14
74+
£22.86
99+
£21.43
199+
£21.14
249+
£20.86
499+
£20.57
999+
£20.00
Couldn't load pickup availability
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Style:
- CSA
- Type:
- Parallel Outer
Technical
Technical
| d | 50mm |
|---|---|
| Be | 20mm |
| D | 90mm |
| z | 30.2mm |
| n | 10mm |
| m | 20.2mm |
| Bi | 43.7mm |
| k | 69.9mm |
| H | 18.3mm |
| G | 6.5mm |
| h | 6.5mm |
| Grub screw | M8X1.0 |
| Weight | 0.83 kg |
| Dynamic load | 3500 kgf |
| Static load | 2300 kgf |
