SKU: CSA.208

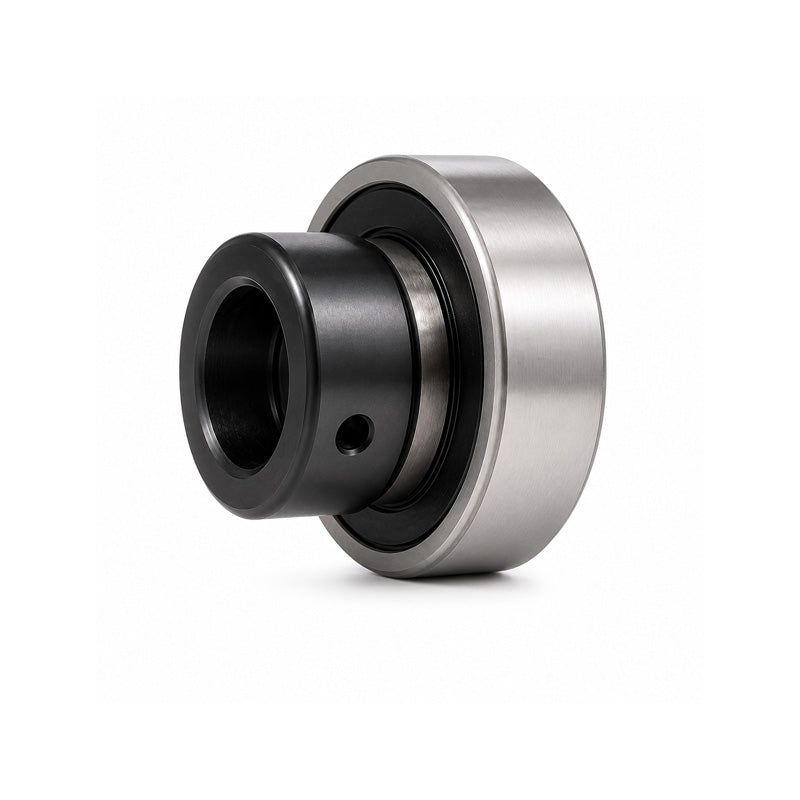

CSA208 Metric Bearing Insert with Locking Collar 40mm Bore 80mm Outside Dia
CSA208 Metric Bearing Insert with Locking Collar 40mm Bore 80mm Outside Dia
Regular price
£19.73
ex VAT£23.68inc. VAT
Regular price
Sale price
£19.73
ex VAT£23.68
inc. VAT
In stock
Price Break
3+
£17.56
4+
£16.57
9+
£16.37
19+
£16.18
49+
£15.98
99+
£15.78
499+
£14.80
999+
£14.60
1999+
£14.40
2999+
£14.20
4999+
£13.81
Share this product
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Style:
- CSA
Technical
Technical
| d | 40mm |
|---|---|
| Be | 18mm |
| D | 80mm |
| z | 30.2mm |
| n | 9mm |
| m | 21.2mm |
| Bi | 43.7mm |
| k | 60.3mm |
| H | 18.3mm |
| G | 6.5mm |
| h | 6mm |
| Grub screw | M8X1.0 |
| Weight | 0.67 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
