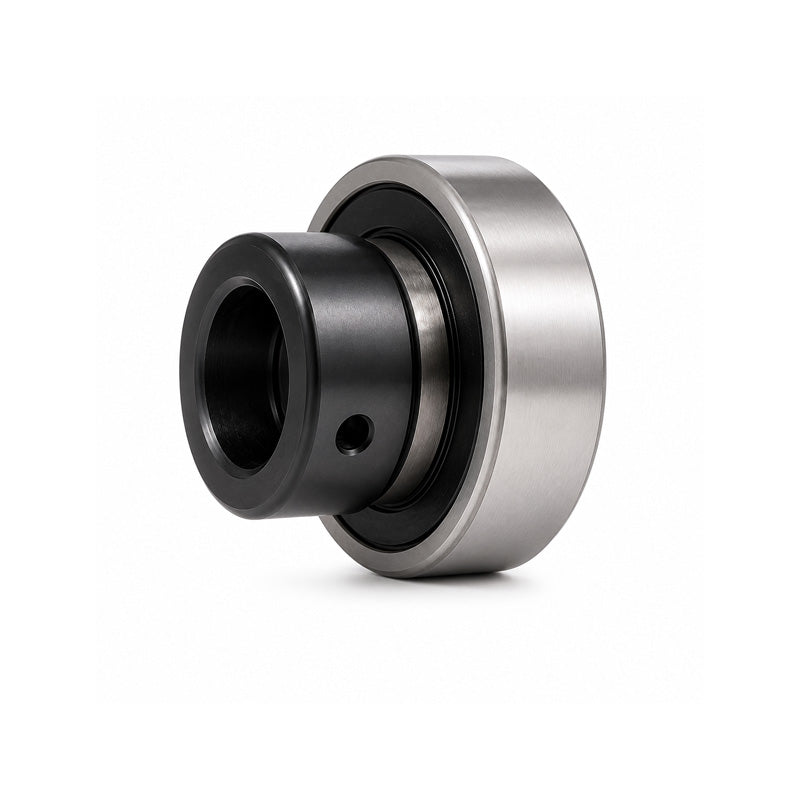

CSA207 Metric Bearing Insert with Locking Collar 35mm Bore 72mm Outside Dia
CSA207 Metric Bearing Insert with Locking Collar 35mm Bore 72mm Outside Dia
Regular price
£15.96
ex VAT£19.15inc. VAT
Regular price
Sale price
£15.96
ex VAT£19.15
inc. VAT
In stock
Price Break
10+
£14.20
19+
£13.41
29+
£13.25
39+
£13.09
49+
£12.93
74+
£12.77
99+
£11.97
199+
£11.81
249+
£11.65
499+
£11.49
999+
£11.17
Couldn't load pickup availability
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Style:
- CSA
- Type:
- Parallel Outer
Technical
Technical
| d | 35mm |
|---|---|
| Be | 17mm |
| D | 72mm |
| z | 25.4mm |
| n | 8.5mm |
| m | 16.9mm |
| Bi | 38.9mm |
| k | 55.6mm |
| H | 17.5mm |
| G | 6.5mm |
| h | 5.5mm |
| Grub screw | M8X1.0 |
| Weight | 0.5 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
