SKU: CSA.206-19

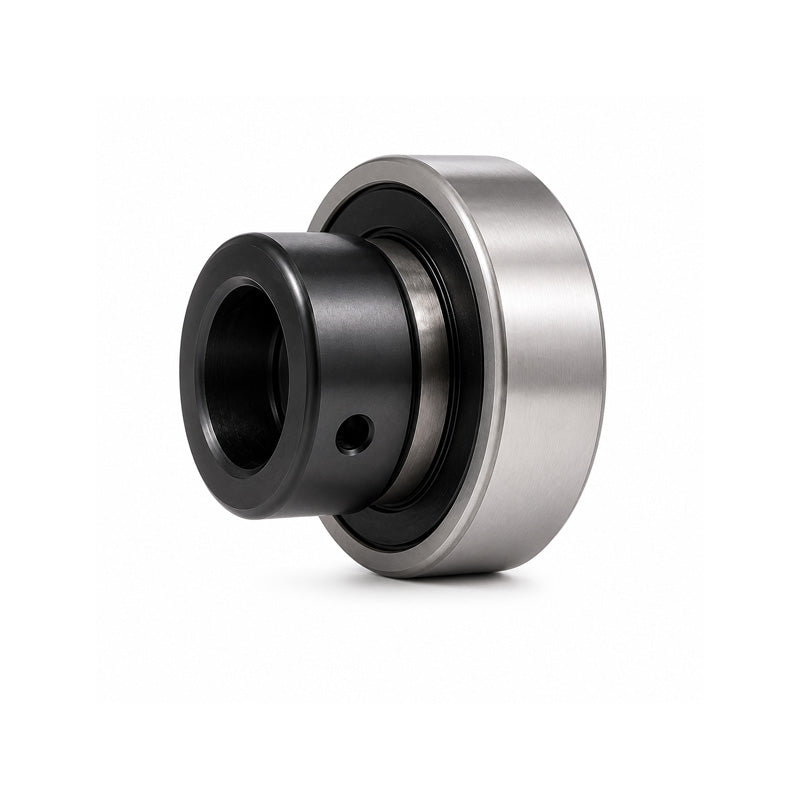

CSA206-19 Imperial Bearing Insert with Locking Collar 1-3/16 inch Bore 62mm Outside Dia
CSA206-19 Imperial Bearing Insert with Locking Collar 1-3/16 inch Bore 62mm Outside Dia
Regular price
£8.46
ex VAT£10.15inc. VAT
Regular price
Sale price
£8.46
ex VAT£10.15
inc. VAT
In stock
Price Break
3+
£7.53
4+
£7.11
9+
£7.02
19+
£6.94
49+
£6.85
99+
£6.77
499+
£6.35
999+
£6.26
1999+
£6.18
2999+
£6.09
4999+
£5.92
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Outside Diameter:
- 62mm
- Style:
- CSA
Technical
Technical
| d | 1-3/16 inch |
|---|---|
| Be | 16mm |
| D | 62mm |
| z | 23.8mm |
| n | 8mm |
| m | 15.8mm |
| Bi | 35.7mm |
| k | 44.5mm |
| H | 15.9mm |
| G | 6mm |
| h | 5mm |
| Grub screw | 1/4"-28UNF |
| Weight | 0.22 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
