SKU: CNB-80-S

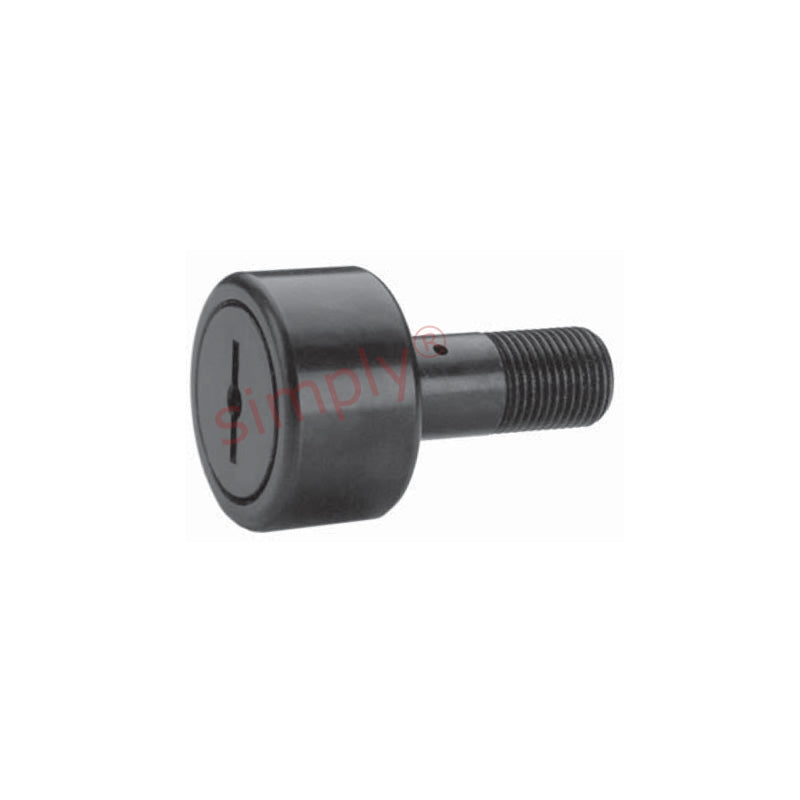

Major Brand CNB80S Sealed and Slotted Cylindrical Cam Follower 2-1/2 inch Outside Diameter
Major Brand CNB80S Sealed and Slotted Cylindrical Cam Follower 2-1/2 inch Outside Diameter
Regular price
£99.45
ex VAT£119.34inc. VAT
Regular price
Sale price
£99.45
ex VAT£119.34
inc. VAT
Equivalent to: CF-2-1/2-S S-80-L CR-2-1/2-X CRS-40
In stock
Price Break
3+
£88.51
4+
£83.54
9+
£82.54
19+
£81.55
29+
£80.55
39+
£79.56
49+
£74.59
59+
£73.59
249+
£72.60
499+
£71.60
999+
£69.62
Description
Description
|
Sealed Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication. |
Equivalent: CF-2-1/2-S S-80-L CR-2-1/2-X CRS-40
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Width:
- 38.1mm = 1.5 (1-1/2) inch
- Pitch:
- UNF 1-14
Technical
Technical
| A | 2.5 inch |
|---|---|
| B | 1.5 inch |
| C | 1 inch |
| D | 2.25 inch |
| E | 1.125 inch |
| Thread class 2A F | 1-14 UNS |
| G | 9/16 inch |
| H | 1/8 inch |
| J | 3/16 inch |
| Min boss diameter | 15/16 inch |
| Recommended bore | 1 inch |
| Recommended torque | 2250 lbf-in |
| Max static capacity | 16450 lbs |
| Basic dynamic rating | 11720 lbs |
