SKU: CNB-64

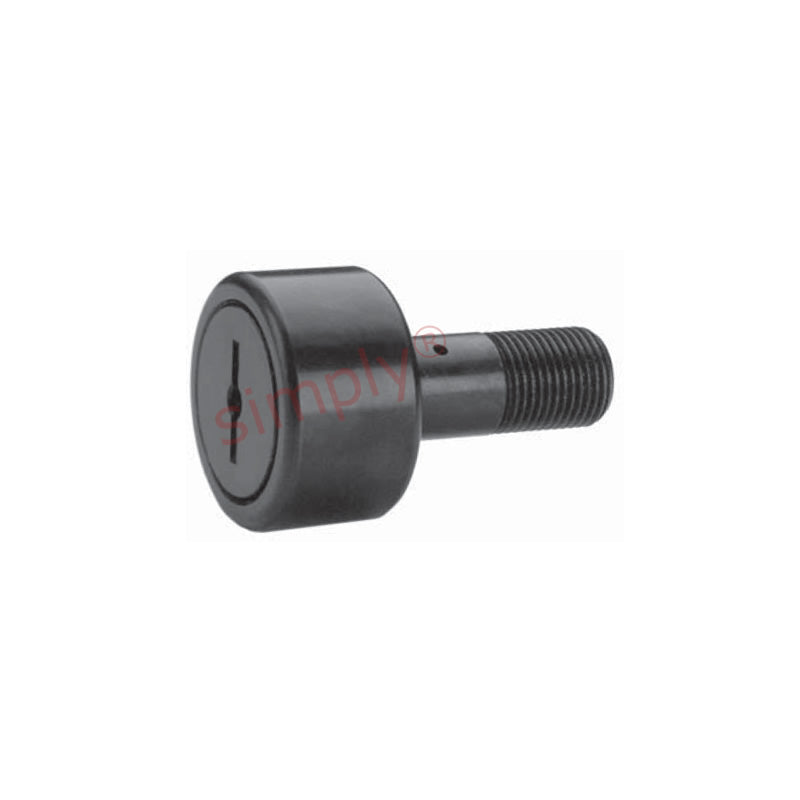

Major Brand CNB64 Slotted Cylindrical Cam Follower 2 inch Outside Diameter
Major Brand CNB64 Slotted Cylindrical Cam Follower 2 inch Outside Diameter
Regular price
£69.42
ex VAT£83.30inc. VAT
Regular price
Sale price
£69.42
ex VAT£83.30
inc. VAT
Equivalent to: CF-2 S-64 CR-2 CR-32
In stock
Price Break
3+
£61.79
4+
£58.32
9+
£57.62
19+
£56.93
29+
£56.23
39+
£55.54
49+
£52.07
59+
£51.37
249+
£50.68
499+
£49.99
999+
£48.60
Description
Description
|
Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |
Equivalent: CF-2 S-64 CR-2 CR-32
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 50.8mm = 2 inch
- Width:
- 31.75mm = 1.25 (1-1/4) inch
- Pitch:
- UNF 7/8-14
Technical
Technical
| A | 2 inch |
|---|---|
| B | 1.25 inch |
| C | 0.875 inch |
| D | 2 inch |
| E | 1 inch |
| Thread class 2A F | 7/8-14 UNF |
| G | 1/2 inch |
| H | 1/8 inch |
| J | 3/16 inch |
| Min boss diameter | 1-13/64 inch |
| Recommended bore | 0.875 inch |
| Recommended torque | 1500 lbf-in |
| Max static capacity | 10570 lbs |
| Basic dynamic rating | 8090 lbs |
