SKU: CNB-44-S

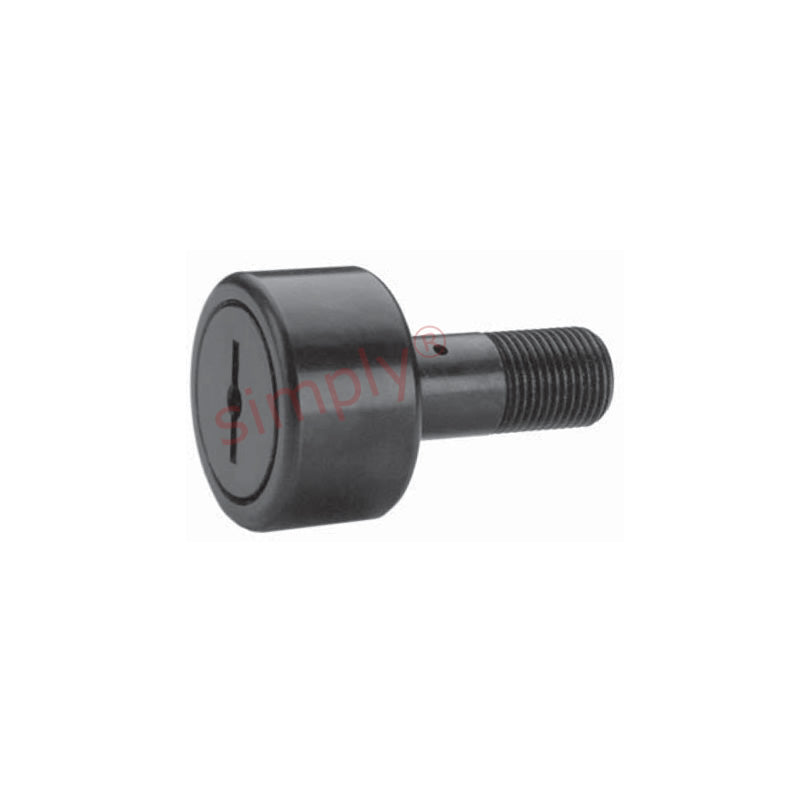

Major Brand CNB44S Sealed and Slotted Cylindrical Cam Follower 1-3/8 inch Outside Diameter
Major Brand CNB44S Sealed and Slotted Cylindrical Cam Follower 1-3/8 inch Outside Diameter
Regular price
£26.27
ex VAT£31.52inc. VAT
Regular price
Sale price
£26.27
ex VAT£31.52
inc. VAT
Equivalent to: CF-1-3/8-S S-44-L CR-1-3/8-X CRS-22
In stock
Price Break
3+
£23.38
4+
£22.07
9+
£21.80
19+
£21.54
29+
£21.28
39+
£21.02
49+
£19.70
59+
£19.44
249+
£19.18
499+
£18.91
999+
£18.39
Description
Description
|
Sealed Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication. |
Equivalent: CF-1-3/8-S S-44-L CR-1-3/8-X CRS-22
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
- Pitch:
- UNF 1/2-20
Technical
Technical
| A | 1.375 inch |
|---|---|
| B | 0.75 inch |
| C | 0.5 inch |
| D | 1.25 inch |
| E | 0.625 inch |
| Thread class 2A F | 1/2-20 UNF |
| G | 5/16 inch |
| H | 3/32 inch |
| J | 3/16 inch |
| Min boss diameter | 49/64 inch |
| Recommended bore | 0.5 inch |
| Recommended torque | 350 lbf-in |
| Max static capacity | 4250 lbs |
| Basic dynamic rating | 3930 lbs |
