SKU: CNB-32

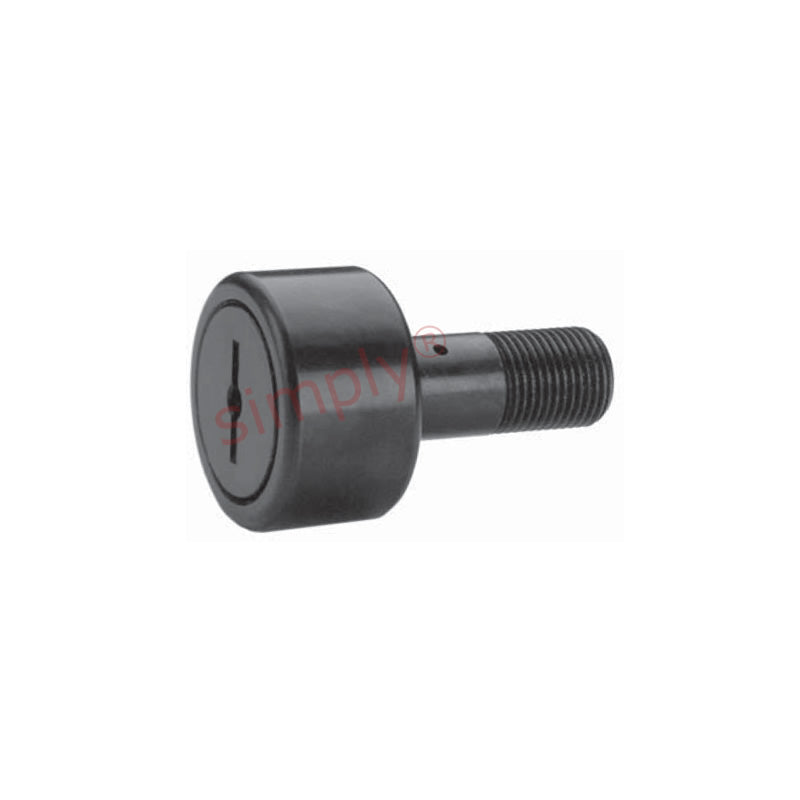

Major Brand CNB32 Slotted Cylindrical Cam Follower 1 inch Outside Diameter
Major Brand CNB32 Slotted Cylindrical Cam Follower 1 inch Outside Diameter
Regular price
£19.93
ex VAT£23.92inc. VAT
Regular price
Sale price
£19.93
ex VAT£23.92
inc. VAT
Equivalent to: CF-1 S-32 CR-1 CR-16
In stock
Price Break
3+
£17.74
4+
£16.74
9+
£16.54
19+
£16.34
29+
£16.14
39+
£15.94
49+
£14.95
59+
£14.75
249+
£14.55
499+
£14.35
999+
£13.95
Description
Description
|
Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |
Equivalent: CF-1 S-32 CR-1 CR-16
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 25.4mm = 1 inch
- Width:
- 15.88mm = 0.625 (5/8) inch
- Pitch:
- UNF 7/16-20
Technical
Technical
| A | 1 inch |
|---|---|
| B | 0.625 inch |
| C | 0.4375 inch |
| D | 1 inch |
| E | 0.5 inch |
| Thread class 2A F | 7/16-20 UNF |
| G | 1/4 inch |
| H | 3/32 inch |
| J | 3/16 inch |
| Min boss diameter | 41/64 inch |
| Recommended bore | 0.4375 inch |
| Recommended torque | 250 lbf-in |
| Max static capacity | 3060 lbs |
| Basic dynamic rating | 2225 lbs |
