SKU: CNB-22-SB

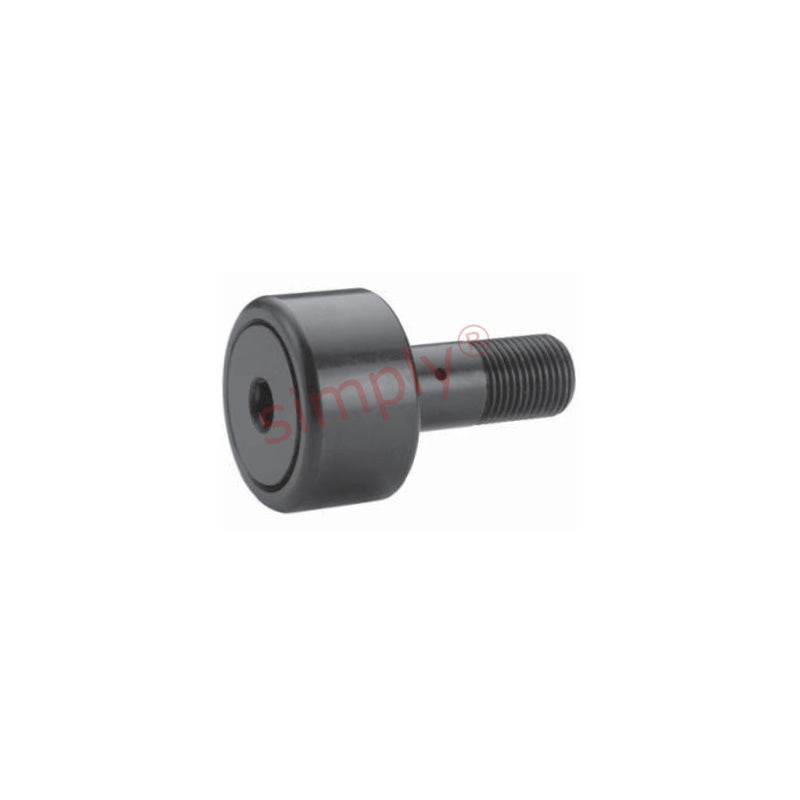

Major Brand CNB22SB Hex Head Sealed Cylindrical Cam Follower 11/16 inch Outside Diameter Allow 7-10 Days
Major Brand CNB22SB Hex Head Sealed Cylindrical Cam Follower 11/16 inch Outside Diameter Allow 7-10 Days
Regular price
£35.70
ex VAT£42.84inc. VAT
Regular price
Sale price
£35.70
ex VAT£42.84
inc. VAT
Equivalent to: CF-11/16-SB S-22-LW CR-11/16-XB CRSB-11
In stock
Price Break
3+
£31.77
4+
£29.99
9+
£29.63
19+
£29.27
29+
£28.92
39+
£28.56
49+
£26.78
59+
£26.42
249+
£26.06
499+
£25.70
999+
£24.99
Description
Description
|
Sealed Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench. |
Equivalent: CF-11/16-SB S-22-LW CR-11/16-XB CRSB-11
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 17.46mm = 0.687 (11/16) inch
- Width:
- 11.11mm = 0.437 (7/16) inch
- Pitch:
- UNF 1/4-28
Technical
Technical

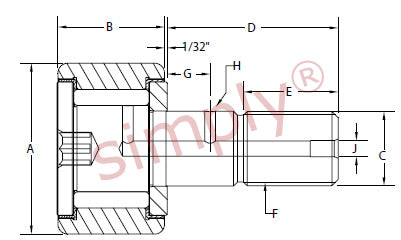

| A | 0.6875 inch |
|---|---|
| B | 0.4375 inch |
| C | 0.25 inch |
| D | 0.75 inch |
| E | 0.312 inch |
| Thread class 2A F | 1/4-28 UNF |
| Min boss diameter | 23/64 inch |
| Recommended bore | 0.25 inch |
| Recommended torque | 35 lbf-in |
| Max static capacity | 1215 lbs |
| Basic dynamic rating | 955 lbs |
