SKU: CNB-16-NSB

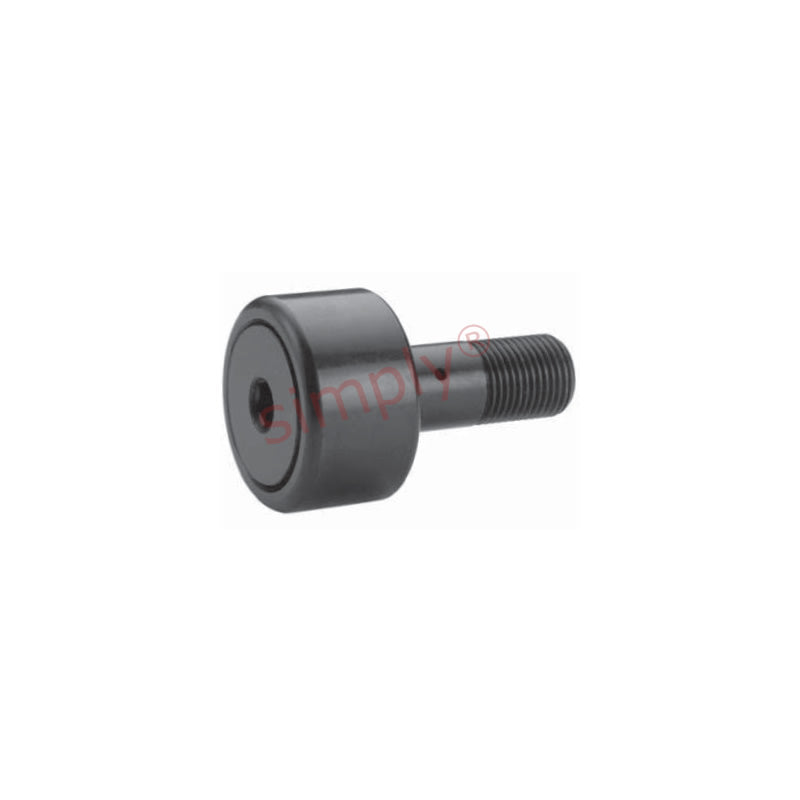

Major Brand CNB16NSB Hex Head Sealed Cylindrical Cam Follower 1/2 inch Outside Diameter Allow 7-10 Days
Major Brand CNB16NSB Hex Head Sealed Cylindrical Cam Follower 1/2 inch Outside Diameter Allow 7-10 Days
Regular price
£21.46
ex VAT£25.75inc. VAT
Regular price
Sale price
£21.46
ex VAT£25.75
inc. VAT
Equivalent to: CF-1/2-NSB CR-1/2A-XB CRSB-8
In stock
Price Break
3+
£19.10
4+
£18.03
9+
£17.81
19+
£17.60
29+
£17.38
39+
£17.17
49+
£16.10
59+
£15.88
249+
£15.67
499+
£15.45
999+
£15.02
Description
Description
|
Sealed Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench. |
Equivalent: CF-1/2-NSB CR-1/2A-XB CRSB-8
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Width:
- 8.73mm = 0.344 (11/32) inch
- Pitch:
- UNF 10-32
Technical
Technical
| A | 0.5 inch |
|---|---|
| B | 0.344 inch |
| C | 0.19 inch |
| D | 0.5 inch |
| E | 0.25 inch |
| Thread class 2A F | 10-32 UNF |
| Min boss diameter | 19/64 inch |
| Recommended bore | 0.19 inch |
| Recommended torque | 15 lbf-in |
| Max static capacity | 720 lbs |
| Basic dynamic rating | 620 lbs |
