SKU: CNB-16-B

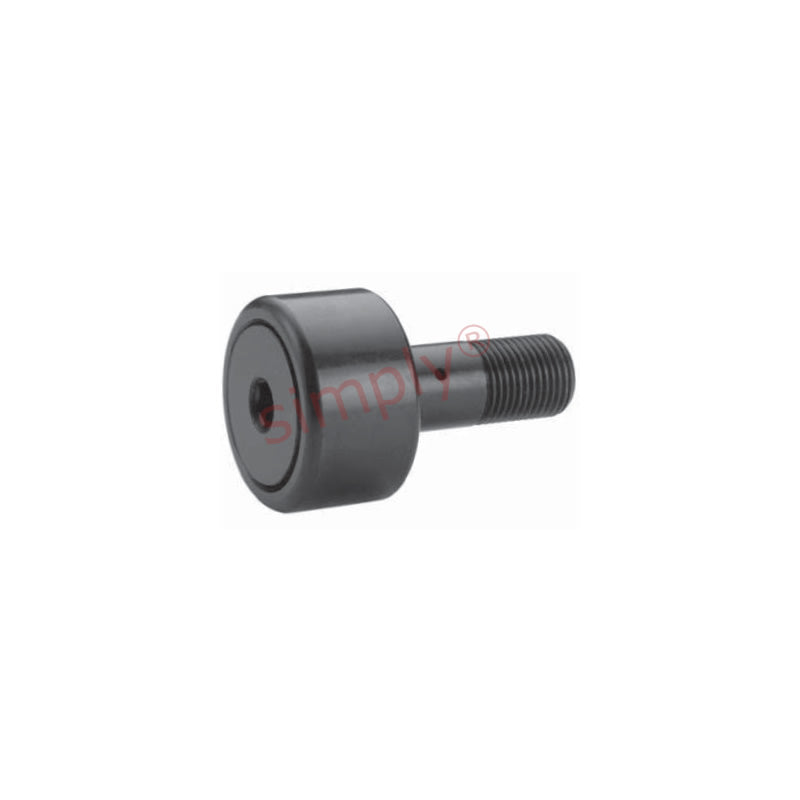

Major Brand CNB16B Hex Head Cylindrical Cam Follower 1/2 inch Outside Diameter Allow 7-10 Days
Major Brand CNB16B Hex Head Cylindrical Cam Follower 1/2 inch Outside Diameter Allow 7-10 Days
Regular price
£18.71
ex VAT£22.45inc. VAT
Regular price
Sale price
£18.71
ex VAT£22.45
inc. VAT
Equivalent to: CF-1/2-B S-16-W CR-1/2-B CRB-8-1
In stock
Price Break
3+
£16.65
4+
£15.72
9+
£15.53
19+
£15.34
29+
£15.16
39+
£14.97
49+
£14.03
59+
£13.85
249+
£13.66
499+
£13.47
999+
£13.10
Description
Description
|
Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, provides ease of installing with a hex wrench. |
Equivalent: CF-1/2-B S-16-W CR-1/2-B CRB-8-1
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Width:
- 9.53mm = 0.375 (3/8) inch
- Pitch:
- UNF 10-32
Technical
Technical
| A | 0.5 inch |
|---|---|
| B | 0.375 inch |
| C | 0.19 inch |
| D | 0.625 inch |
| E | 0.25 inch |
| Thread class 2A F | 10-32 UNF |
| Min boss diameter | 19/64 inch |
| Recommended bore | 0.19 inch |
| Recommended torque | 15 lbf-in |
| Max static capacity | 1085 lbs |
| Basic dynamic rating | 930 lbs |
