SKU: CM-UCFC217D1-NTN

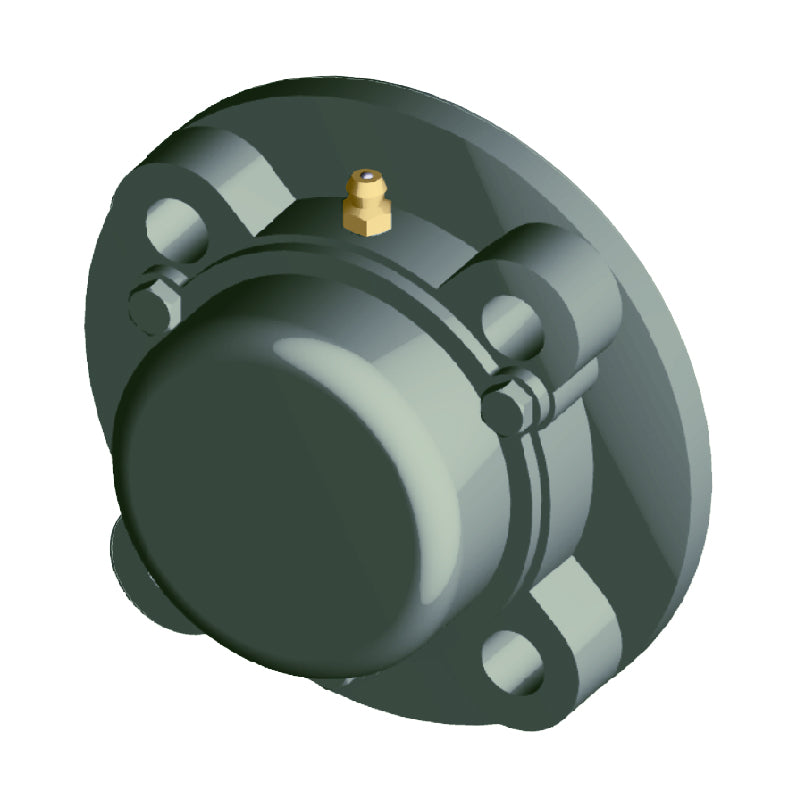

NTN CM-UCFC217D1 Metric Four Bolt Cast Iron Round Flanged Housing with 85mm Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCFC217D1 Metric Four Bolt Cast Iron Round Flanged Housing with 85mm Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
Regular price
£387.76
ex VAT£465.31inc. VAT
Regular price
Sale price
£387.76
ex VAT£465.31
inc. VAT
In stock
Price Break
3+
£383.88
4+
£368.37
9+
£360.62
19+
£348.98
49+
£341.23
99+
£321.84
499+
£271.43
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 85mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 147.1mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 85mm |
| L | 250mm |
| J | 208mm |
| (J<sub>1</sub>) | 147.1mm |
| A<sub>2</sub> | 18mm |
| N | 23mm |
| A<sub>3</sub> | 18mm |
| A<sub>1C</sub> | 45.5mm |
| A | 63mm |
| H<sub>3</sub> | 180mm |
| B | 85.7mm |
| S | 34.1mm |
| F (Min.) | 113mm |
| t<sub>2</sub> | 20mm |
| A<sub>5</sub> | 114mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 92 kN |
| Static load C<sub>0r</sub> | 64 kN |
| Fatigue load limit C<sub>u</sub> | 4.6 kN |
| --- | Unit information |
| Mass | 12 kg |
