SKU: CM-UCF312D1-NTN

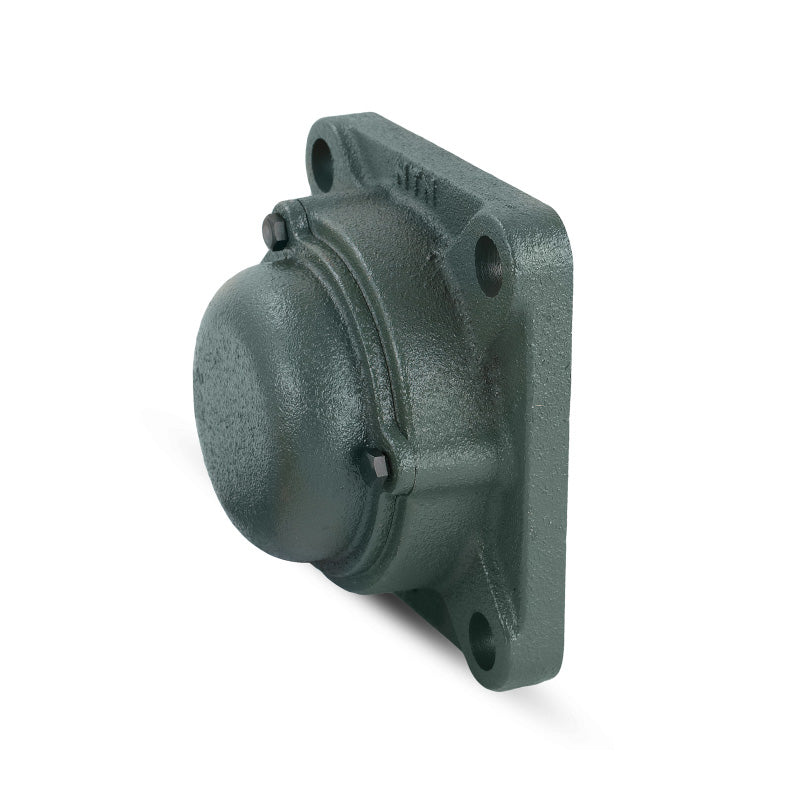

NTN CM-UCF312D1 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCF312D1 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
Regular price
£288.17
ex VAT£345.80inc. VAT
Regular price
Sale price
£288.17
ex VAT£345.80
inc. VAT
In stock
Price Break
3+
£285.29
4+
£273.76
9+
£268.00
19+
£259.35
49+
£253.59
99+
£239.18
499+
£201.72
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCF
- Bolt Hole Centres:
- 150mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| L | 195mm |
| J | 150mm |
| A<sub>2</sub> | 33mm |
| A<sub>1</sub> | 22mm |
| A | 56mm |
| N | 23mm |
| B | 71mm |
| S | 26mm |
| t<sub>2</sub> | 16mm |
| A<sub>5</sub> | 100mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 90.5 kN |
| Static load C<sub>0r</sub> | 52 kN |
| Fatigue load limit C<sub>u</sub> | 4.1 kN |
| --- | Unit information |
| Mass | 7.8 kg |
