SKU: CM-UCF206D1-NTN

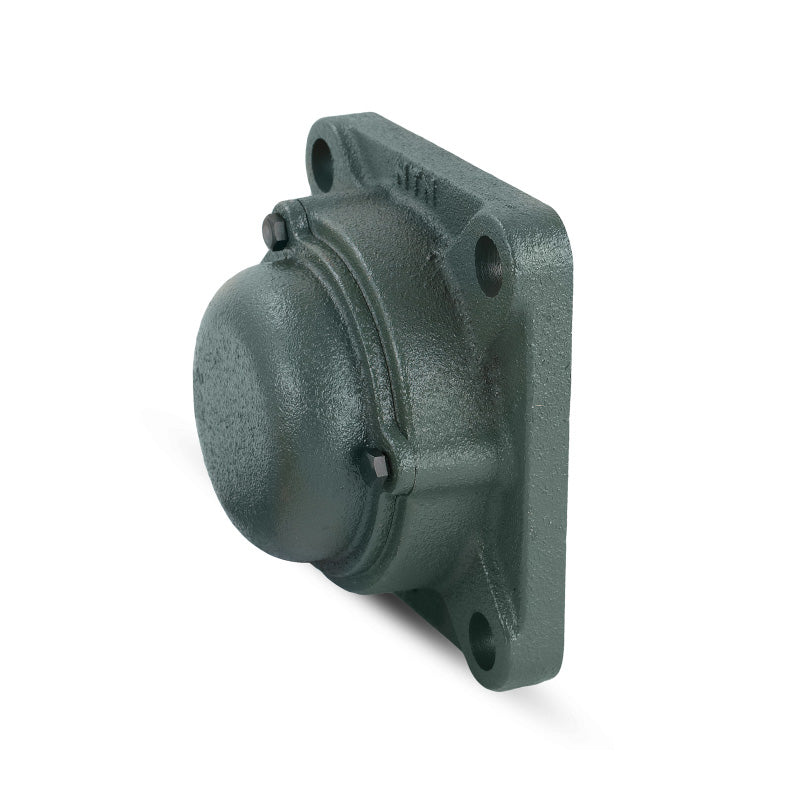

NTN CM-UCF206D1 Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCF206D1 Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
Regular price
£37.73
ex VAT£45.28inc. VAT
Regular price
Sale price
£37.73
ex VAT£45.28
inc. VAT
In stock
Price Break
3+
£33.58
4+
£31.69
9+
£31.32
19+
£30.94
49+
£30.56
99+
£30.18
499+
£28.30
999+
£27.92
1999+
£27.54
2999+
£27.17
4999+
£26.41
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCF
- Bolt Hole Centres:
- 83mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 30mm |
| L | 108mm |
| J | 83mm |
| A<sub>2</sub> | 18mm |
| A<sub>1</sub> | 13mm |
| A | 31mm |
| N | 12mm |
| B | 38.1mm |
| S | 15.9mm |
| t<sub>2</sub> | 11mm |
| A<sub>5</sub> | 56mm |
| Fixing bolt | M10 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 21.6 kN |
| Static load C<sub>0r</sub> | 11.3 kN |
| Fatigue load limit C<sub>u</sub> | 0.795 kN |
| --- | Unit information |
| Mass | 1.3 kg |
