SKU: CCNBH-44-SB

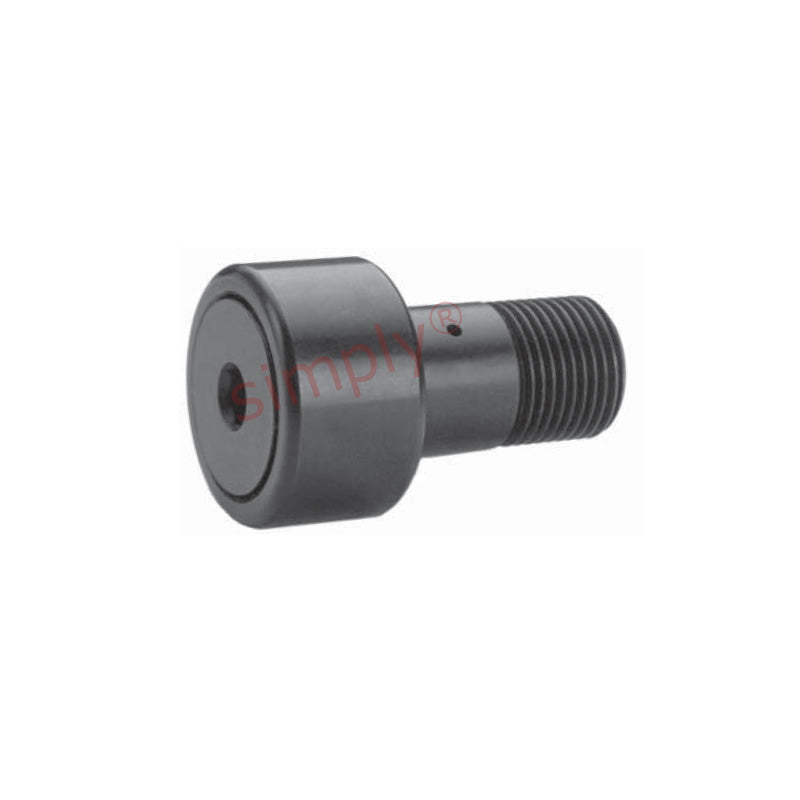

Major Brand CCNBH44SB Heavy Duty Hex Head Crowned Cam Follower 1-3/8 inch Outside Diameter Allow 7-10 Days
Major Brand CCNBH44SB Heavy Duty Hex Head Crowned Cam Follower 1-3/8 inch Outside Diameter Allow 7-10 Days
Regular price
£55.08
ex VAT£66.10inc. VAT
Regular price
Sale price
£55.08
ex VAT£66.10
inc. VAT
Equivalent to: CCFH-1-3/8-SB CH-44-LW HR-1-3/8-XBC CRHSBC-22
In stock
Price Break
3+
£49.02
4+
£46.27
9+
£45.72
19+
£45.17
29+
£44.61
39+
£44.06
49+
£41.31
59+
£40.76
249+
£40.21
499+
£39.66
999+
£38.56
Description
Description
|
Heavy Duty Cam Follower with Hex Head and Crowned O.D: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. This type of bearing is recommended wherever variations in dimensions of alignment of the tracks or cam might cause excessive angular loading. It reduces thrust on the rollers and wear, and aids reliability. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, ease of installing with a hex wrench. |
Equivalent: CCFH-1-3/8-SB CH-44-LW HR-1-3/8-XBC CRHSBC-22
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
- Pitch:
- UNF 3/4-16

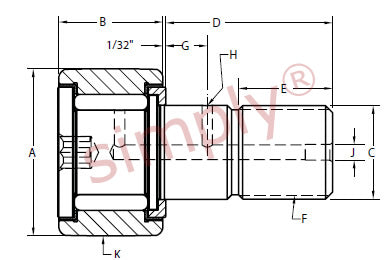

Technical
Technical
| A | 1.375 inch |
|---|---|
| B | 0.75 inch |
| C | 0.75 inch |
| D | 1.25 inch |
| E | 0.625 inch |
| Thread class 2A F | 3/4-16 UNF |
| G | 5/16 inch |
| H | 3/32 inch |
| J | 3/16 inch |
| Min boss diameter | 63/64 inch |
| Recommended bore | 0.75 inch |
| Recommended torque | 1250 lbf-in |
| Max static capacity | 8500 lbs |
| Basic dynamic rating | 3930 lbs |
