SKU: CABUI225Z-SPEC

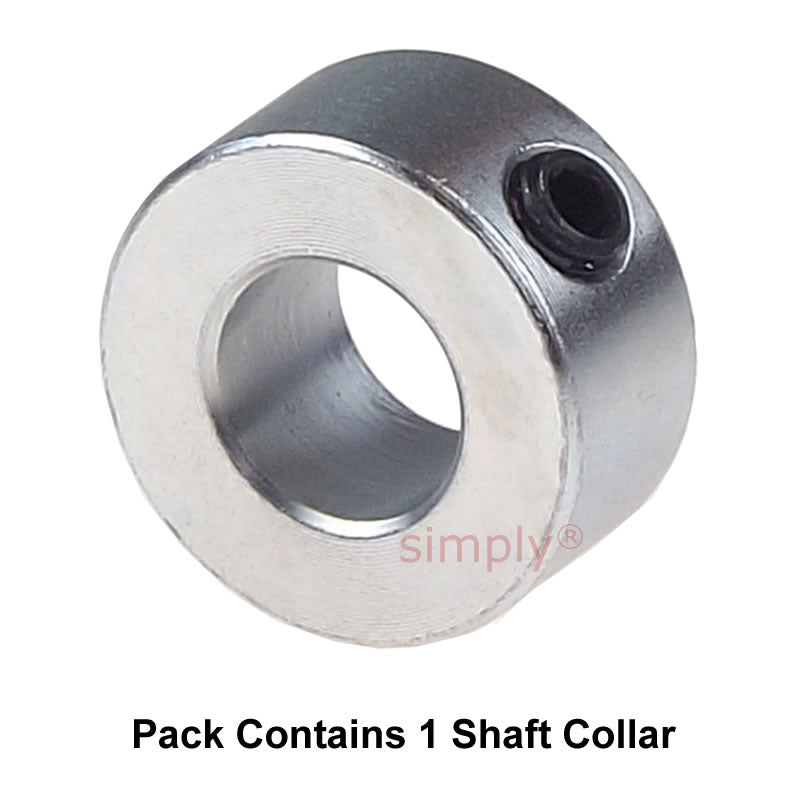

CABUI225ZSW Zinc Plated En8 Steel Shaft Collar 2-1/4x3-1/4x15/16 inch with Set Screw

Name: CABUI225ZSW Zinc Plated En8 Steel Shaft Collar 2-1/4x3-1/4x15/16 inch with Set Screw
Brand: Simply Shaft Collars
SKU: CABUI225Z-SPEC
Price: 7.74 GBP
Availability: InStock

£7.74 ex VAT£9.29inc. VAT

£7.74 ex VAT£9.29 inc. VAT

Sale Sold out

In stock

Price Break

5+ £7.66

10+ £7.35

20+ £7.20

50+ £6.97

100+ £6.81

500+ £6.42

1000+ £5.42

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Imperial Shaft Collar with Grub Screw: EN8 Steel Galvanized shaft collar with grub screw to lock it in place once installed, typical uses include location of bearings on shafts, positioning of shafts, separation of items along shafts and more...
Benefits: Galvanized steel, corrosion resistant. Tough EN8 material.

Brand / Quality:: Simply Shaft Collars - Economy Quality
Inside Diameter:: 57.15mm = 2.25 (2-1/4) inch
Outside Diameter:: 82.55mm = 3.25 (3-1/4) inch
Width:: 23.81mm = 0.937 (15/16) inch

Technical

Bore (A)	57.15mm = 2.25 (2-1/4) inch
Diameter (B)	82.55mm = 3.25 (3-1/4) inch
Width (C)	23.81mm = 0.937 (15/16) inch
Set Screw	1/2 BSW or 1/2-13 UNC
