SKU: C4032K30V-SKF

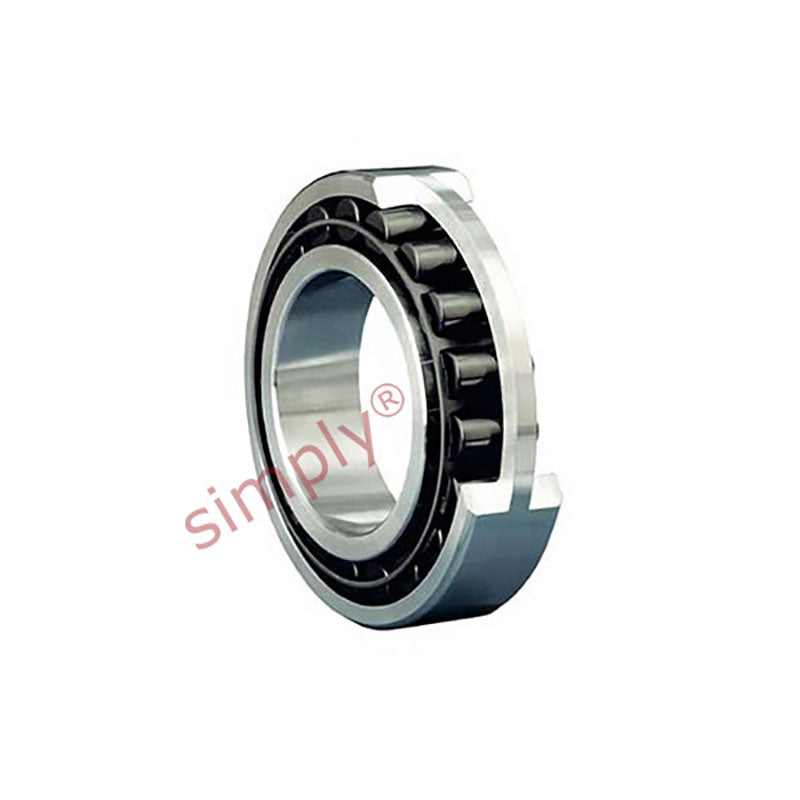

SKF C4032K30V Carb Toroidal Roller Bearing with Taper Bore 160x240x80mm Allow 7-10 Days
SKF C4032K30V Carb Toroidal Roller Bearing with Taper Bore 160x240x80mm Allow 7-10 Days
Regular price
£1,745.54
ex VAT£2,094.65inc. VAT
Regular price
Sale price
£1,745.54
ex VAT£2,094.65
inc. VAT
In stock
Price Break
10+
£1,553.53
19+
£1,466.25
29+
£1,448.80
39+
£1,431.34
49+
£1,413.89
74+
£1,396.43
99+
£1,309.15
199+
£1,291.70
249+
£1,274.24
499+
£1,256.79
999+
£1,221.88
Share this product
Description
Description
|
SKF Carb Toroidal Roller Bearings: These compact design bearings have a single row of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants and the ability to deliberately displace the position of the rings to each other permits accurate setting of the radial internal clearance. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 160mm
- Outside Diameter:
- 240mm
- Width:
- 80mm
- Seals / Shields:
- None
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 160mm |
| D | 240mm |
| B | 80mm |
| d2 | 181mm |
| D1 | 217mm |
| r1r2 min | 2.1mm |
| s1 | 18.1mm |
| s2 | 8.2mm |
| da min | 171mm |
| da max | 195mm |
| Da max | 229mm |
| ra max | 2mm |
| --- | Speeds and Loads |
| Dynamic load C | 915 kN |
| Static load Co | 1460 kN |
| Fatigue load limit Pu | 140 kN |
| Limiting speed | 600 rpm |
| --- | Factors |
| Misalignment factor k1 | 0.109 |
| Operating clearance factor k2 | 0.103 |
| --- | Weights |
| Weight | 12.6 kg |
| --- | Matching Withdrawal Sleeves |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AH24032+sleeve>AH24032</a> |
