SKU: C-UCP211D1-NTN

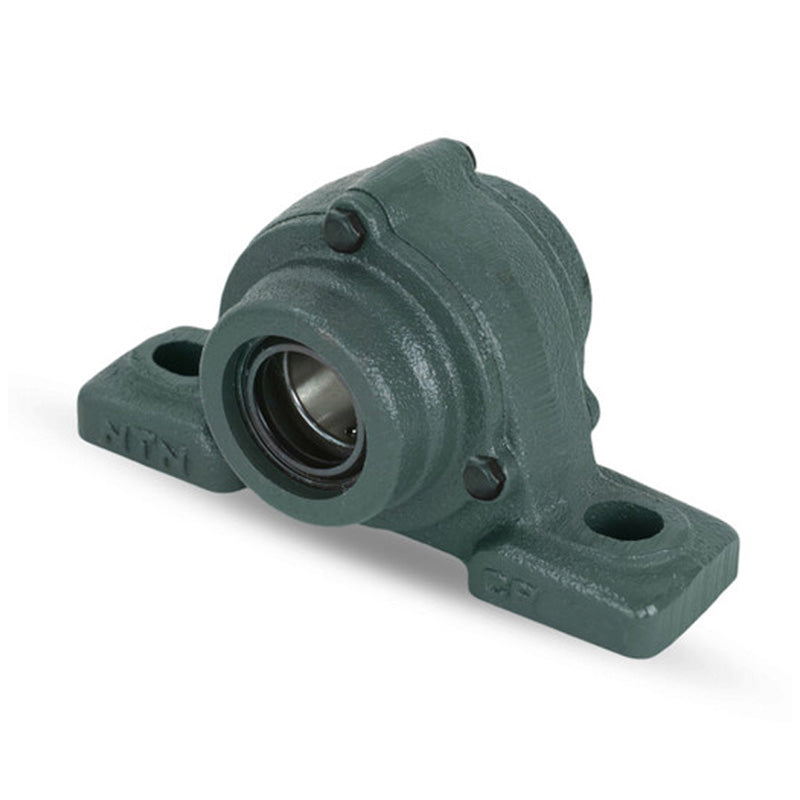

NTN C-UCP211D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCP211D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Regular price
£110.82
ex VAT£132.98inc. VAT
Regular price
Sale price
£110.82
ex VAT£132.98
inc. VAT
In stock
Price Break
3+
£109.71
4+
£105.28
9+
£103.06
19+
£99.74
49+
£97.52
99+
£91.98
499+
£77.57
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCP
- Bolt Hole Centres:
- 171mm
Technical
Technical

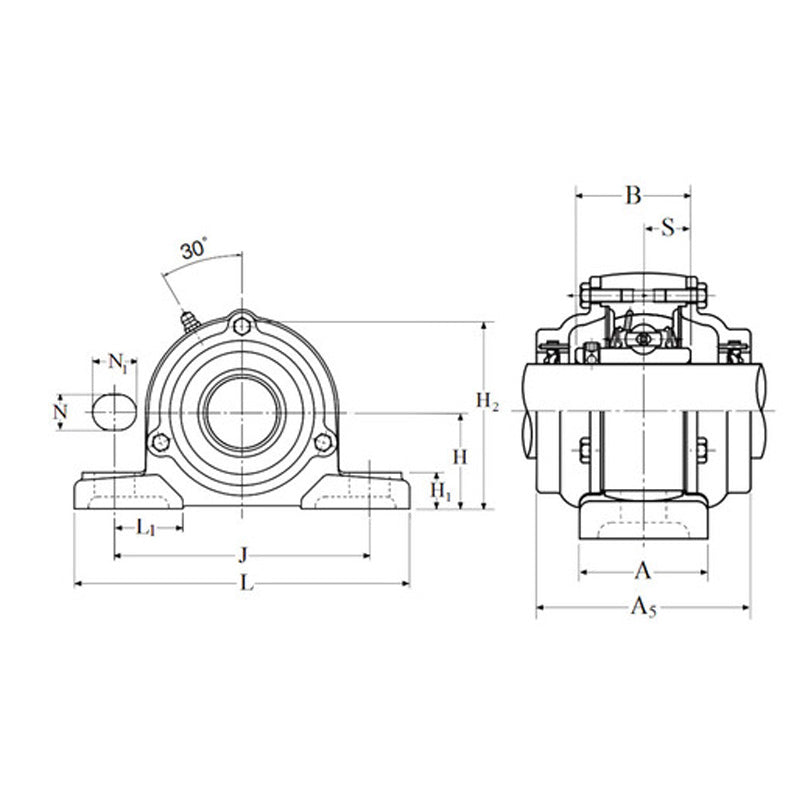

| --- | Dimensions |
|---|---|
| Shaft diameter | 55mm |
| H | 63.5mm |
| L | 219mm |
| J | 171mm |
| A | 60mm |
| N | 20mm |
| N<sub>1</sub> | 23mm |
| H<sub>1</sub> | 23mm |
| H<sub>2</sub> | 126mm |
| L<sub>1</sub> | 65mm |
| B | 55.6mm |
| S | 22.2mm |
| H<sub>3</sub> | 130mm |
| A<sub>5</sub> | 100mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 48 kN |
| Static load C<sub>0r</sub> | 29.2 kN |
| Fatigue load limit C<sub>u</sub> | 2.29 kN |
| --- | Unit information |
| Mass | 4.4 kg |
