SKU: BR.303920
BR303920 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-7/8x2-7/16x1-1/4 inch
BR303920 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-7/8x2-7/16x1-1/4 inch
Regular price
£21.31
ex VAT£25.57inc. VAT
Regular price
Sale price
£21.31
ex VAT£25.57
inc. VAT
Equivalent to: HJ303920 HJ-303920 MR30 MR-30 SJ7335 NCS3020
In stock
Price Break
10+
£18.96
20+
£17.90
30+
£17.69
40+
£17.47
50+
£17.26
75+
£17.05
100+
£15.98
200+
£15.77
250+
£15.56
500+
£15.34
1000+
£14.92
Description
Description
|
Imperial Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Equivalent: HJ303920 HJ-303920 MR30 MR-30 SJ7335 NCS3020
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 47.63mm = 1.875 (1-7/8) inch
- Outside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Width:
- 31.75mm = 1.25 (1-1/4) inch

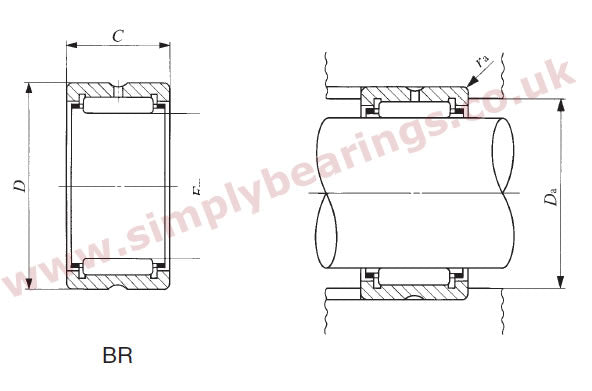

Technical
Technical
| Fw | 1-7/8 inch |
|---|---|
| D | 2-7/16 inch |
| C | 1-1/4 inch |
| Dynamic Load Cor | 60100 N |
| Static Load Cr | 108000 N |
| Weight | 0.225 kg |
