SKU: BP3S-90-340-TRI-SNR

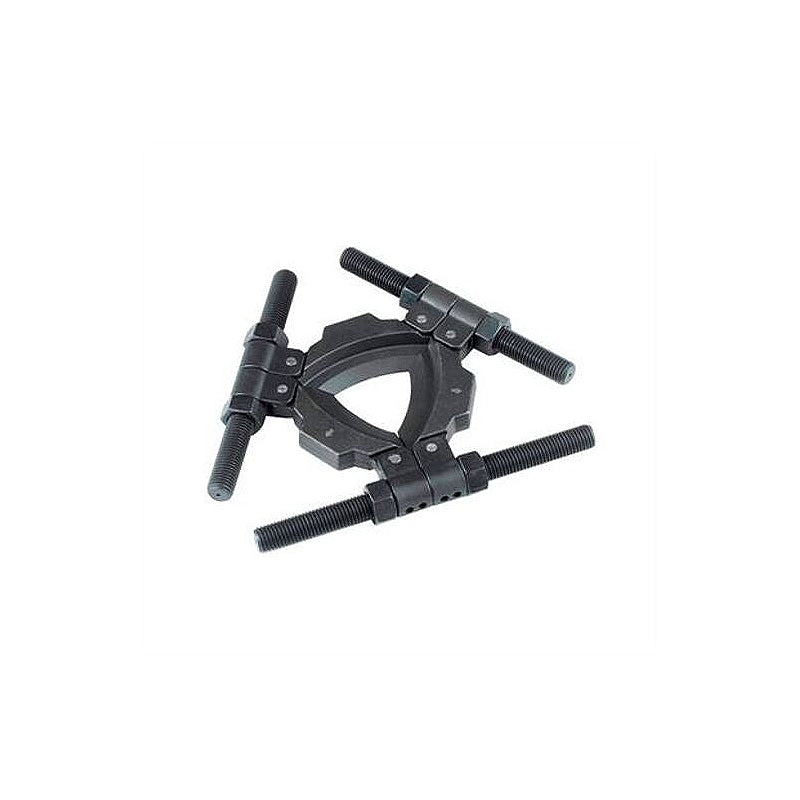

SNR BP3S 90-340 Tri-Section Pulling Plate 90x340x45mm - Allow 2-3 Days
SNR BP3S 90-340 Tri-Section Pulling Plate 90x340x45mm - Allow 2-3 Days
Regular price
£1,078.67
ex VAT£1,294.40inc. VAT
Regular price
Sale price
£1,078.67
ex VAT£1,294.40
inc. VAT
In stock
Price Break
10+
£960.02
19+
£906.08
29+
£895.30
39+
£884.51
49+
£873.72
74+
£862.94
99+
£809.00
199+
£798.22
249+
£787.43
499+
£776.64
999+
£755.07
Couldn't load pickup availability
Description
Description
SNR BP3S Tri-Section Pulling Plates: These Tri-Section Pulling Plates offer a wide range of adjustments which are also available in four dimensions. Capable of holding parts with a diameter from 26mm up to 495mm. These Pulling Plates are to be used with the suitable SNR Three-Arm Puller which can be determined by required size and power.
Benefits: High-quality and Wide range of adjustment.
- Brand / Quality:
- SNR - High Quality
Technical
Technical
| Capacity | 12000kg |
|---|---|
| Minimum Shaft Diameter A1 | 90mm |
| Maximum Shaft Diameter | 340mm |
| Max Spread B | 460mm |
| Length D | 430mm |
| Thread E | 7/8 inch - 16 UNF |
| Thickness F | 45mm |
| Material | Forged Steel Alloy |
| Weight | 16.5kg |
