SKU: BK2220-NTN

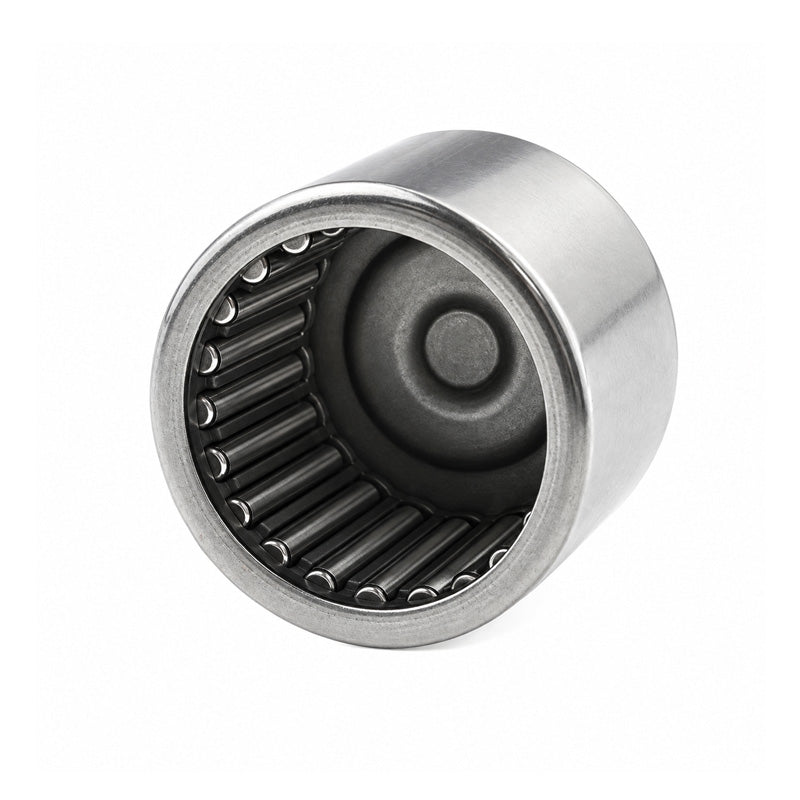

NTN BK2220 Drawn Cup Needle Roller Bearing with Closed End 22x28x20mm
NTN BK2220 Drawn Cup Needle Roller Bearing with Closed End 22x28x20mm
Regular price
£6.85
ex VAT£8.22inc. VAT
Regular price
Sale price
£6.85
ex VAT£8.22
inc. VAT
In stock
Price Break
3+
£6.10
4+
£5.75
9+
£5.69
19+
£5.62
49+
£5.55
99+
£5.48
499+
£5.14
999+
£5.07
1999+
£5.00
2999+
£4.93
4999+
£4.80
Description
Description
BK Drawn Cup Type Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 28mm
- Width:
- 20mm
Technical
Technical
| Fw - Under rollers diameter | 22mm |
|---|---|
| D - Outside diameter | 28mm |
| C - Width of bearing, drawn cup or outer ring | 20mm |
| C1 - Max drawn cup closed end thickness | 2.7mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR17X22X20.5 |
| Cr - Dynamic load rating | 17.2 kN |
| C0r - Static load rating | 29.8 kN |
| N - Grease lubrication limit speed | 7500 tr/min |
| N - Oil lubrication limit speed | 11000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
