SKU: BK2212-NTN

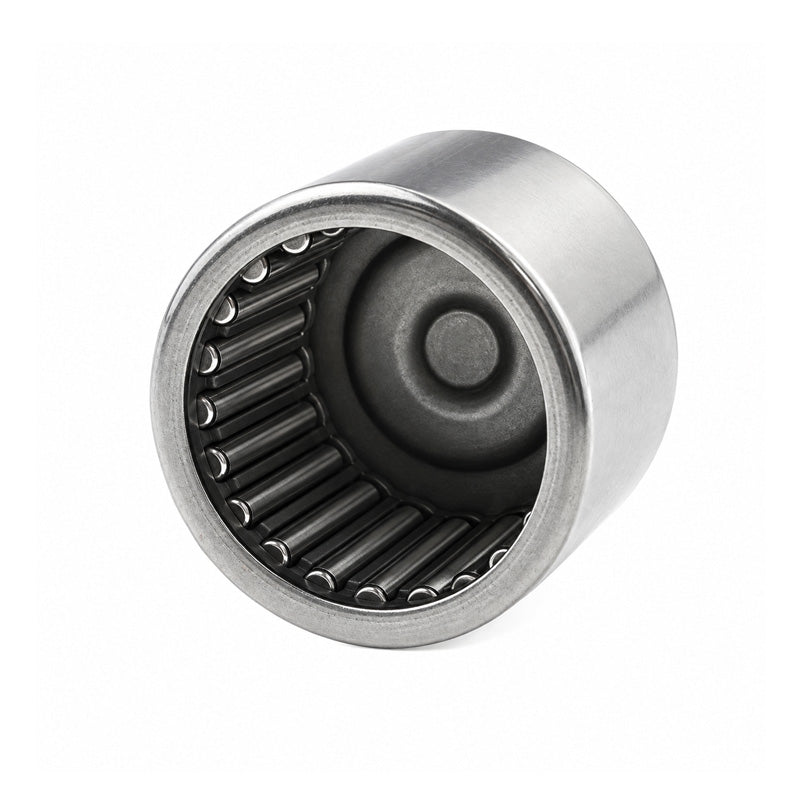

NTN BK2212 Drawn Cup Needle Roller Bearing with Closed End 22x28x12mm - Allow 2-3 Days
NTN BK2212 Drawn Cup Needle Roller Bearing with Closed End 22x28x12mm - Allow 2-3 Days
Regular price
£4.79
ex VAT£5.75inc. VAT
Regular price
Sale price
£4.79
ex VAT£5.75
inc. VAT
In stock
Price Break
3+
£4.74
4+
£4.55
9+
£4.45
19+
£4.31
49+
£4.22
99+
£3.98
499+
£3.35
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
BK Drawn Cup Type Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 28mm
- Width:
- 12mm
Technical
Technical
| Fw - Under rollers diameter | 22mm |
|---|---|
| D - Outside diameter | 28mm |
| C - Width of bearing, drawn cup or outer ring | 12mm |
| C1 - Max drawn cup closed end thickness | 2.7mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR17X22X13 |
| Cr - Dynamic load rating | 9.75 kN |
| C0r - Static load rating | 14.3 kN |
| N - Grease lubrication limit speed | 7500 tr/min |
| N - Oil lubrication limit speed | 11000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
