SKU: BK1614RS-EU

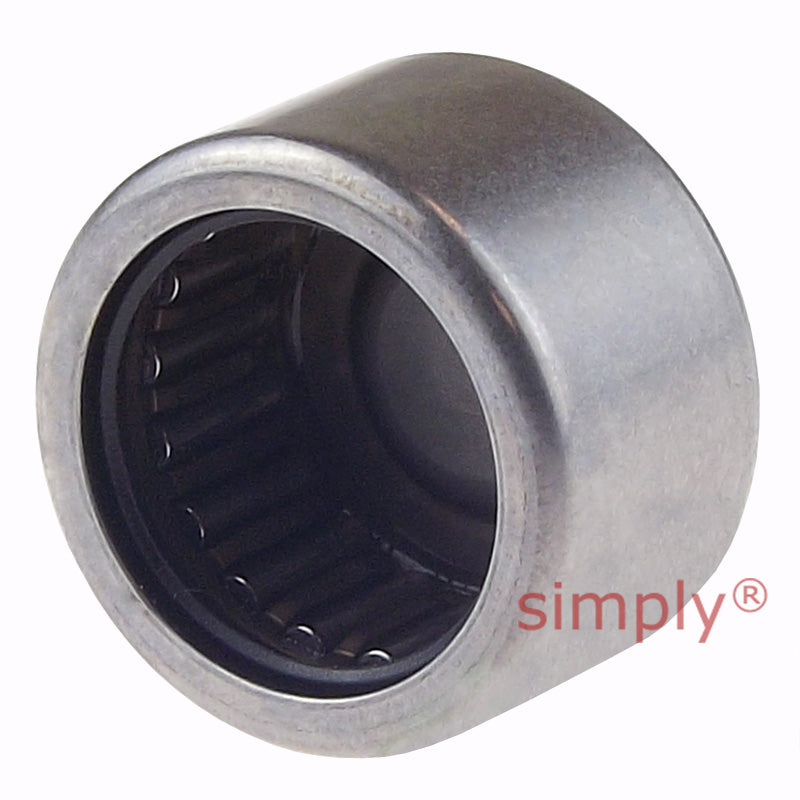

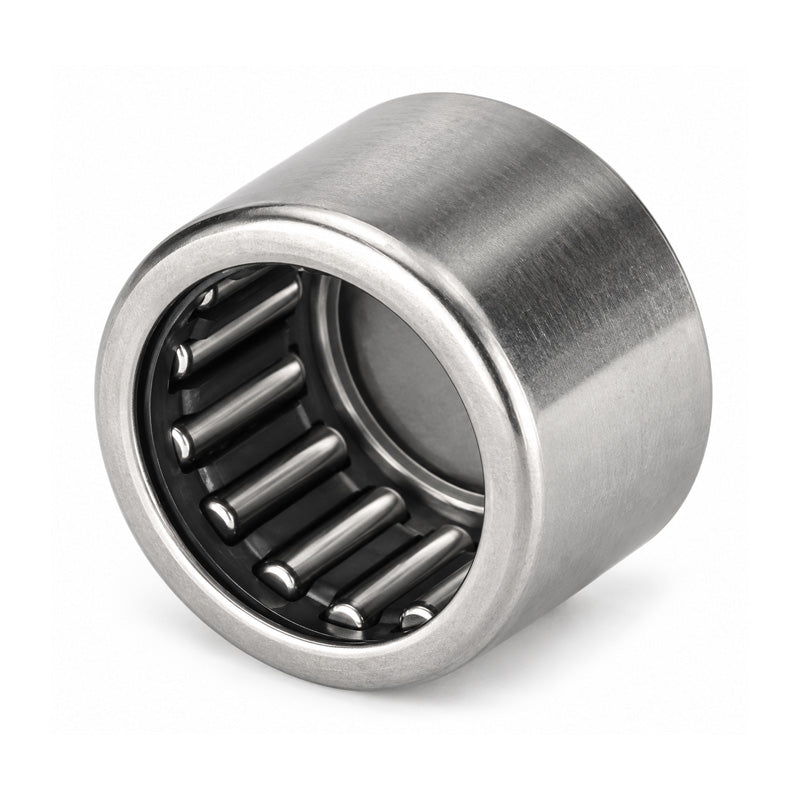

BK1614RS Budget Drawn Cup Needle Roller Bearing with One Closed End 16x22x14mm
BK1614RS Budget Drawn Cup Needle Roller Bearing with One Closed End 16x22x14mm
Regular price
£7.69
ex VAT£9.23inc. VAT
Regular price
Sale price
£7.69
ex VAT£9.23
inc. VAT
In stock
Price Break
10+
£6.85
19+
£6.46
29+
£6.38
39+
£6.31
49+
£6.23
74+
£6.15
99+
£5.77
199+
£5.69
249+
£5.62
499+
£5.54
999+
£5.38
Description
Description
|
Budget BK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 22mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 16mm |
|---|---|
| D | 22mm |
| C | 14mm |
| Dynamic load C | 7370 N |
| Static load Co | 9800 N |
| Fatigue load limit Pu | 1120 N |
| Speed in grease | 10000 rpm |
| C1 | 11.3mm |
| r1r2 min | 0.8mm |
| Da max | 17mm |
| ra max | 0.8mm |
| Inner ring | IR12x16x13 |
| Weight | 15 g |
