SKU: BK1414RS-EU

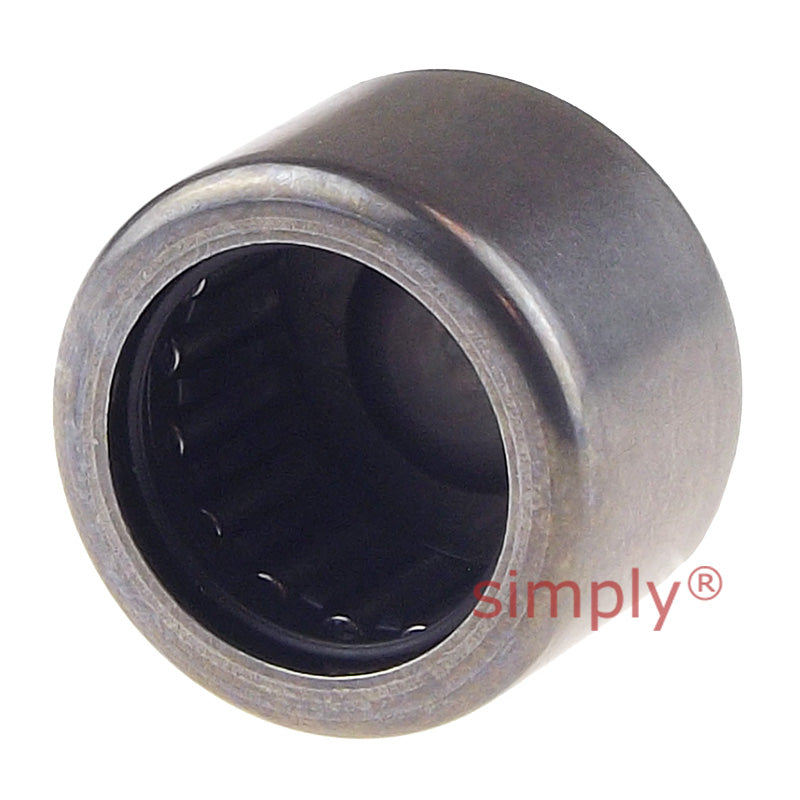

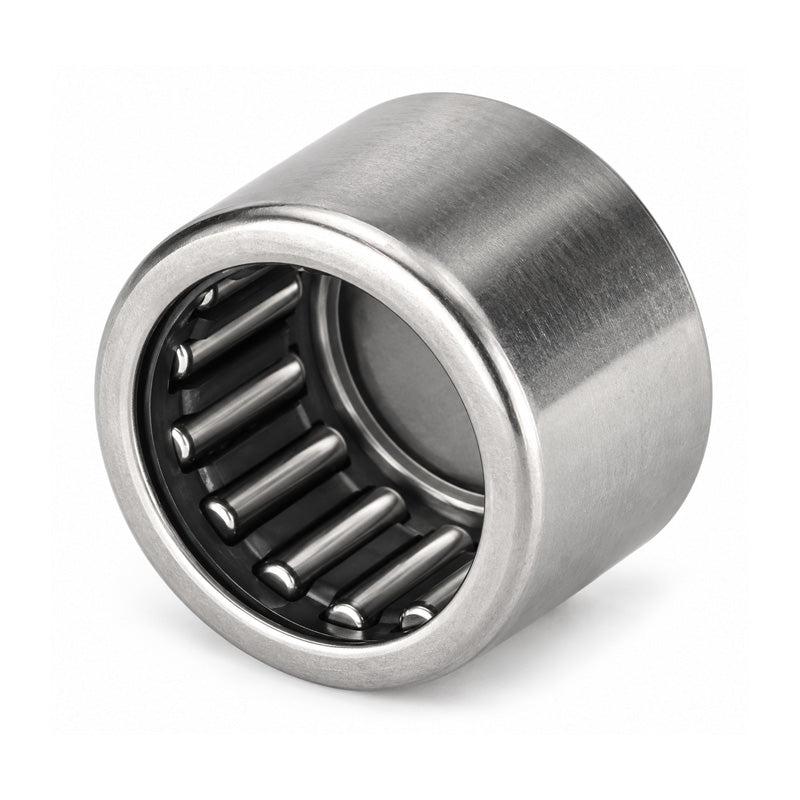

BK1414RS Budget Drawn Cup Needle Roller Bearing with One Closed End 14x20x14mm
BK1414RS Budget Drawn Cup Needle Roller Bearing with One Closed End 14x20x14mm
Regular price
£6.46
ex VAT£7.75inc. VAT
Regular price
Sale price
£6.46
ex VAT£7.75
inc. VAT
In stock
Price Break
10+
£5.75
19+
£5.42
29+
£5.36
39+
£5.29
49+
£5.23
74+
£5.17
99+
£4.84
199+
£4.78
249+
£4.71
499+
£4.65
999+
£4.52
Description
Description
|
Budget BK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 14mm
- Outside Diameter:
- 20mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 14mm |
|---|---|
| D | 20mm |
| C | 14mm |
| Dynamic load C | 6820 N |
| Static load Co | 8650 N |
| Fatigue load limit Pu | 980 N |
| Speed in grease | 11000 rpm |
| C1 | 11.3mm |
| r1r2 min | 0.8mm |
| Da max | 15mm |
| ra max | 0.8mm |
| Inner ring | IR10x14x13 |
| Weight | 13 g |
