SKU: BK1010-EU
BK1010 Budget Drawn Cup Needle Roller Bearing with One Closed End 10x14x10mm
BK1010 Budget Drawn Cup Needle Roller Bearing with One Closed End 10x14x10mm
Regular price
£2.85
ex VAT£3.42inc. VAT
Regular price
Sale price
£2.85
ex VAT£3.42
inc. VAT
In stock
Price Break
10+
£2.54
19+
£2.39
29+
£2.37
39+
£2.34
49+
£2.31
74+
£2.28
99+
£2.14
199+
£2.11
249+
£2.08
499+
£2.05
999+
£2.00
Description
Description
|
Budget BK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 14mm
- Width:
- 10mm

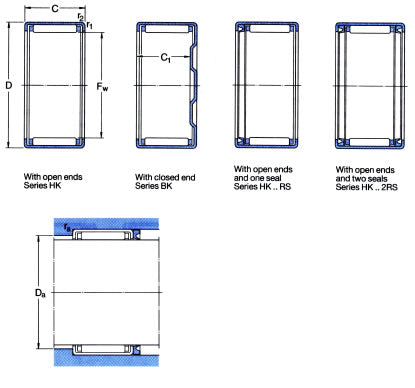

Technical
Technical
| Fw | 10mm |
|---|---|
| D | 14mm |
| C | 10mm |
| Dynamic load C | 4290 N |
| Static load Co | 5300 N |
| Fatigue load limit Pu | 570 N |
| Speed in grease | 16000 rpm |
| Speed in oil | 24000 rpm |
| C1 | 8.4mm |
| r1r2 min | 0.4mm |
| Da max | 10.3mm |
| ra max | 0.4mm |
| Inner ring | IR7x10x10.5 |
| Seal | G10x14x3 |
| Weight | 4.3 g |
