SKU: BK0808-MB

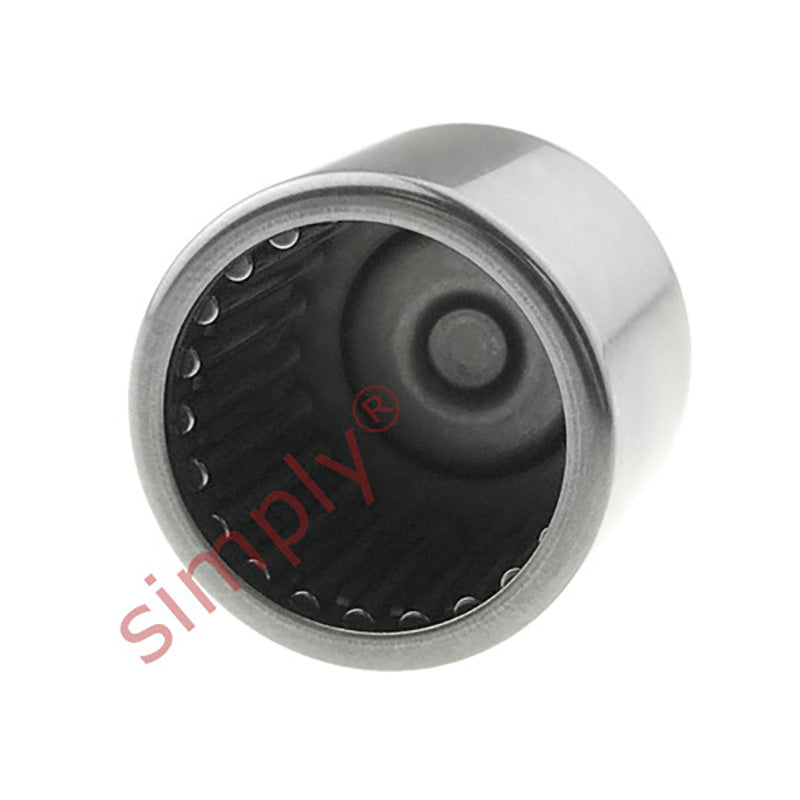

Major Brand BK0808 Drawn Cup Type Needle Roller Bearing with One Closed End 8x12x8mm
Major Brand BK0808 Drawn Cup Type Needle Roller Bearing with One Closed End 8x12x8mm
Regular price
£5.62
ex VAT£6.74inc. VAT
Regular price
Sale price
£5.62
ex VAT£6.74
inc. VAT
In stock
Price Break
10+
£5.00
19+
£4.72
29+
£4.66
39+
£4.61
49+
£4.55
74+
£4.49
99+
£4.21
199+
£4.16
249+
£4.10
499+
£4.05
999+
£3.93
Description
Description
|
BK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 12mm
- Width:
- 8mm
Technical
Technical
| Fw | 8mm |
|---|---|
| D | 12mm |
| C | 8mm |
| Dynamic load | 2700 N |
| Static load | 2750 N |
| Fatigue load limit Pu | 285 N |
| Speed in grease | 17000 rpm |
| Speed in oil | 26000 rpm |
| C1 | 6.4mm |
| r1r2 min | 0.4mm |
| Da max | 8.3mm |
| ra max | 0.4mm |
| Seal | G8x12x3 |
| Weight | 3 g |
