SKU: BHA.3324.ZOH

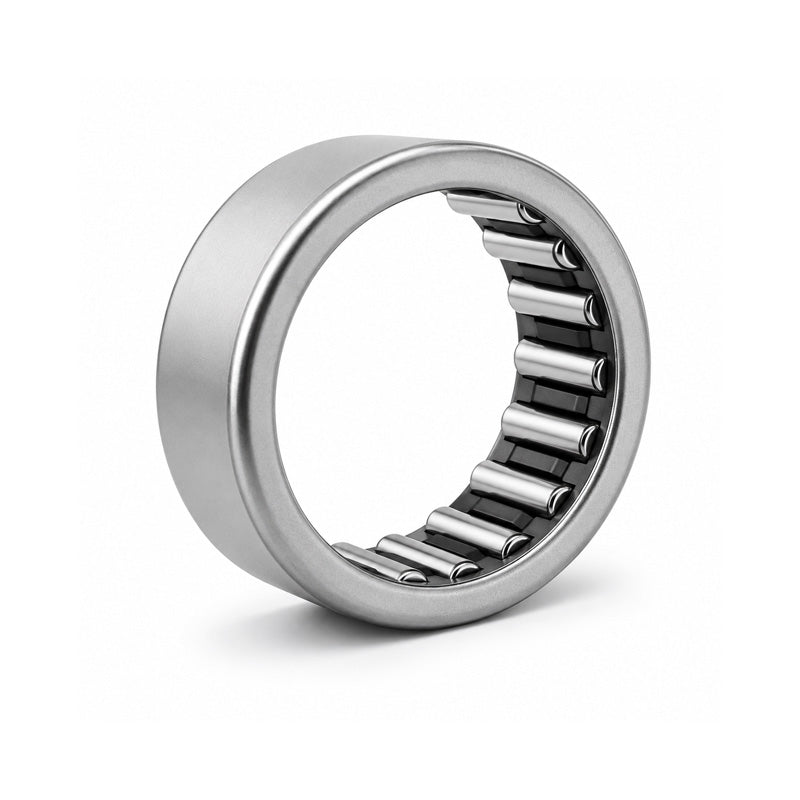

BHA3324ZOH Needle Roller Bearing 2-1/16x2-17/32x1-1/2 inch
BHA3324ZOH Needle Roller Bearing 2-1/16x2-17/32x1-1/2 inch
Regular price
£12.84
ex VAT£15.41inc. VAT
Regular price
Sale price
£12.84
ex VAT£15.41
inc. VAT
In stock
Price Break
10+
£11.43
19+
£10.79
29+
£10.66
39+
£10.53
49+
£10.40
74+
£10.27
99+
£9.63
199+
£9.50
249+
£9.37
499+
£9.24
999+
£8.99
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings : As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 52.39mm = 2.063 (2-1/16) inch
- Outside Diameter:
- 64.29mm = 2.531 (2-17/32) inch
- Width:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Fw | 2-1/16 inch |
|---|---|
| D | 2-17/32 inch |
| C | 1-1/2 inch |
| Dynamic Load Cor | 73900 N |
| Static Load Cr | 154000 N |
| Weight | 0.205 kg |
