SKU: BB-RT-01-60-ES

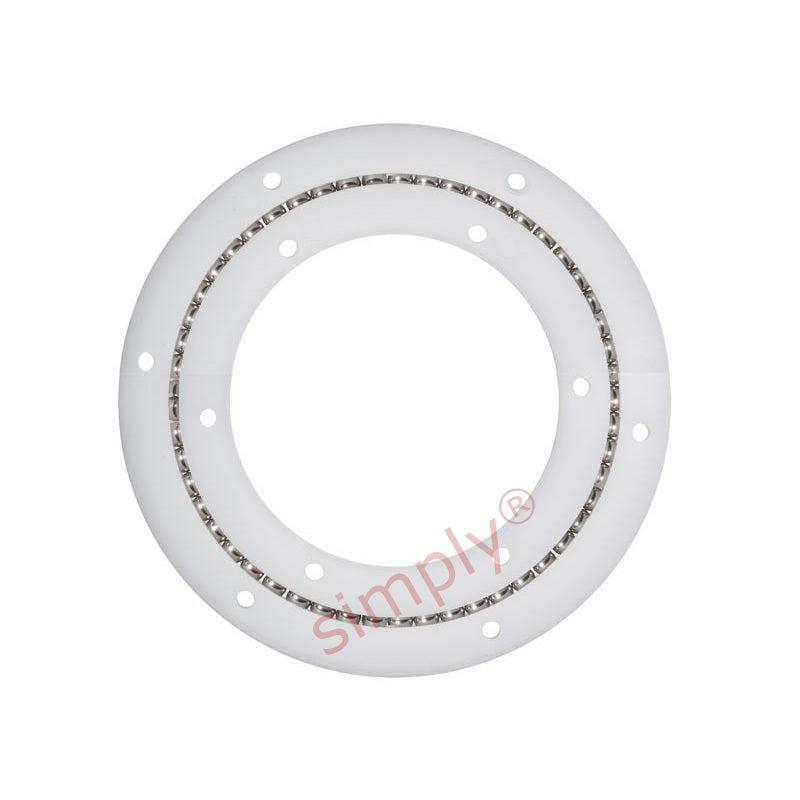

xiros xirodur BBRT0160ES Slewing Ring Bearing with Stainless Steel Balls 60x100x17.5mm
xiros xirodur BBRT0160ES Slewing Ring Bearing with Stainless Steel Balls 60x100x17.5mm
Regular price
£193.29
ex VAT£231.95inc. VAT
Regular price
Sale price
£193.29
ex VAT£231.95
inc. VAT
In stock
Price Break
10+
£172.03
19+
£162.36
29+
£160.43
39+
£158.50
49+
£156.56
74+
£154.63
99+
£144.97
199+
£143.03
249+
£141.10
499+
£139.17
999+
£135.30
Couldn't load pickup availability
Description
Description
|
IGUS xiros® xirodur® B180 Slewing Ring Bearings: The combination of stainless steel balls with polymer inner and outer races results in maintenance-free dry operation with low coefficients of friction. The xiros® slewing ring bearing can be used in temperatures of up to +80 deg C. Benefits: Lubrication- and maintenance-free, low weight, corrosion-resistant, washable, cost-effective, electrically insulating |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 100mm
- Width:
- 17.5mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| D | 100mm |
|---|---|
| D1 | 90mm |
| d | 60mm |
| d1 | 68mm |
| H | 17.5mm |
| h | 2.5mm |
| T | 60 degrees |
| K1 | 3.3mm |
| K2 | 3.3mm |
| Static load capacity | 1250 N |
| Dynamic load capacity | 250 N |
| Max speed | 1500 rpm |
| Race | B180 |
| Ball material | Stainless Steel |
