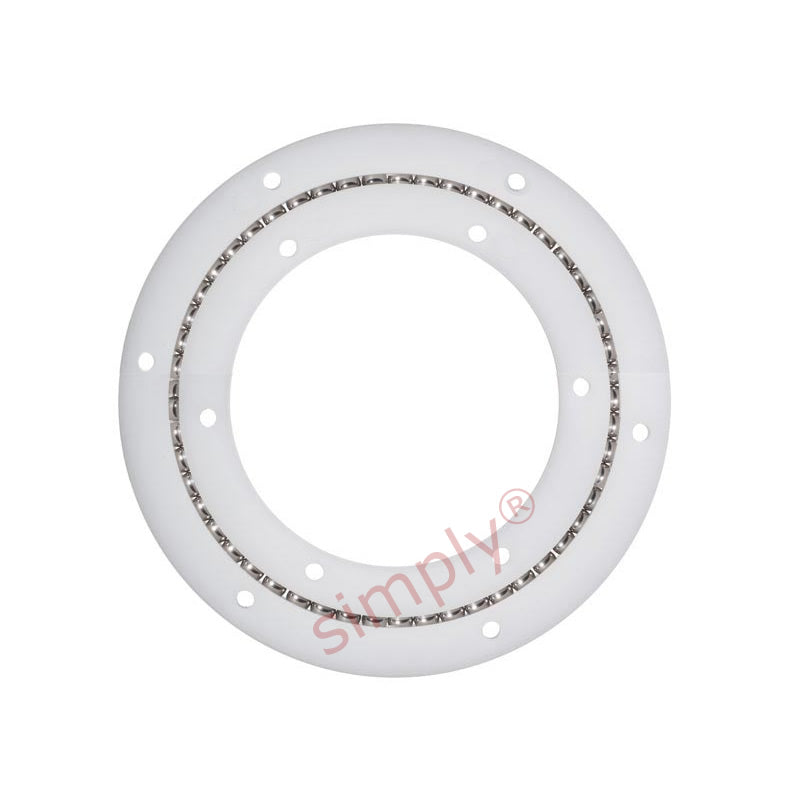

xiros xirodur BBRT01100ES Slewing Ring Bearing with Stainless Steel Balls 100x160x20mm

Name: xiros xirodur BBRT01100ES Slewing Ring Bearing with Stainless Steel Balls 100x160x20mm
Brand: Igus
SKU: BB-RT-01-100-ES
Price: 336.17 GBP
Availability: InStock

£336.17 ex VAT£403.40inc. VAT

£336.17 ex VAT£403.40 inc. VAT

Sale Sold out

In stock

Price Break

5+ £299.19

9+ £282.38

29+ £279.02

49+ £275.66

99+ £272.30

199+ £268.94

299+ £252.13

399+ £248.77

499+ £245.41

749+ £242.04

999+ £235.32

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

IGUS xiros® xirodur® B180 Slewing Ring Bearings: The combination of stainless steel balls with polymer inner and outer races results in maintenance-free dry operation with low coefficients of friction. The xiros® slewing ring bearing can be used in temperatures of up to +80 deg C.
Benefits: Lubrication- and maintenance-free, low weight, corrosion-resistant, washable, cost-effective, electrically insulating

Brand / Quality:: Igus - High Quality
Inside Diameter:: 100mm
Outside Diameter:: 160mm
Width:: 20mm
Seals / Shields:: None
Clearance:: * Standard

Technical

D	160mm
D1	150mm
d	100mm
d1	110mm
H	20mm
h	5mm
T	60 degrees
K1	5.2mm
K2	5.2mm
Static load capacity	1250 N
Dynamic load capacity	250 N
Max speed	1500 rpm
Race	B180
Ball material	Stainless Steel
