SKU: BAM.65

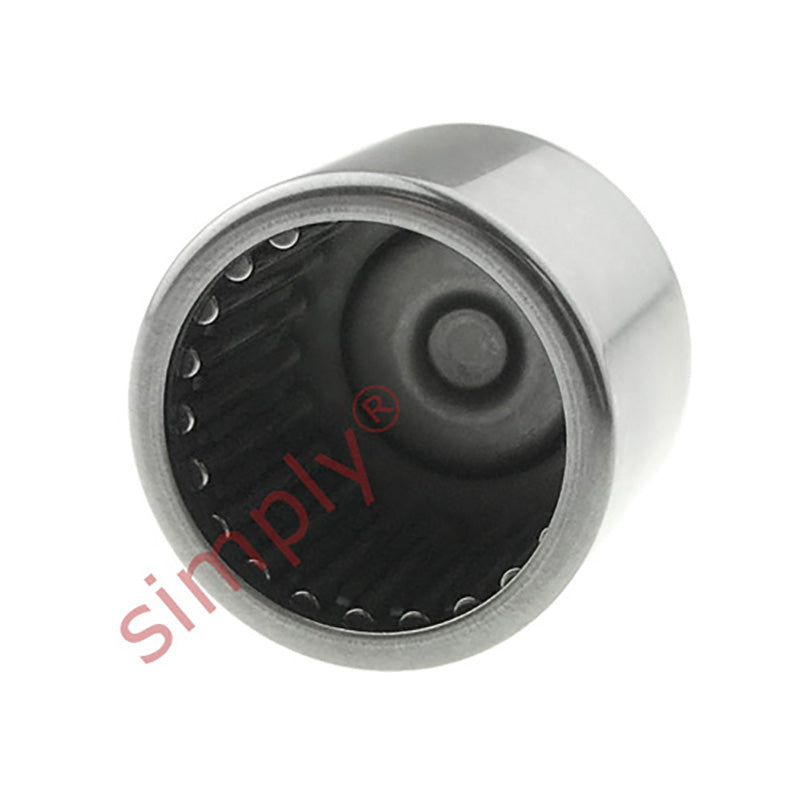

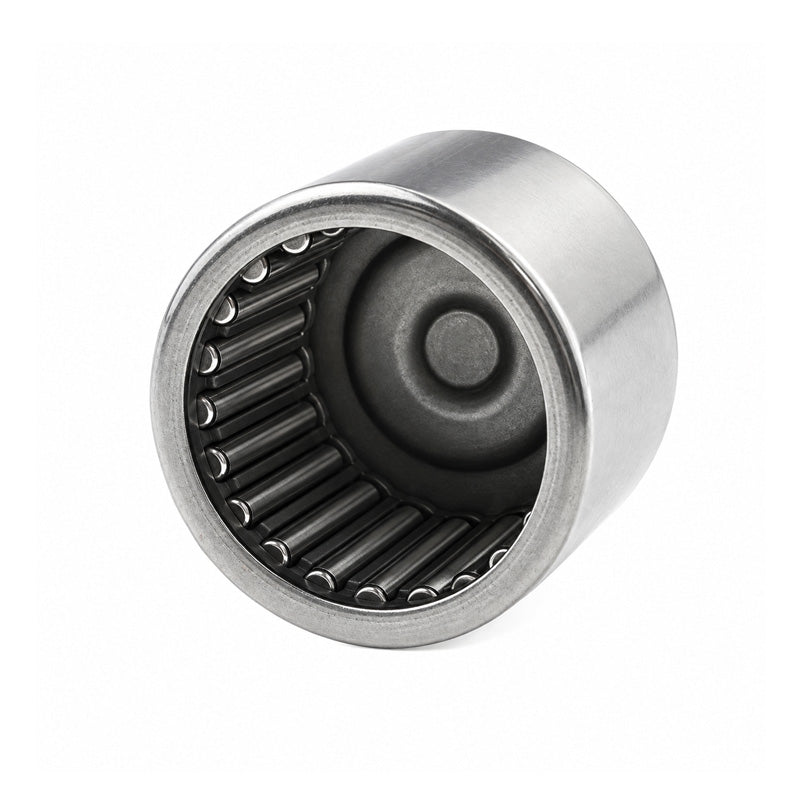

BAM65 Imperial Closed End Needle Roller Bearing 3/8x9/16x5/16 inch
BAM65 Imperial Closed End Needle Roller Bearing 3/8x9/16x5/16 inch
Regular price
£4.18
ex VAT£5.02inc. VAT
Regular price
Sale price
£4.18
ex VAT£5.02
inc. VAT
Equivalent to: MJ651 BCE65
In stock
Price Break
10+
£3.72
19+
£3.51
29+
£3.47
39+
£3.43
49+
£3.39
74+
£3.34
99+
£3.14
199+
£3.09
249+
£3.05
499+
£3.01
999+
£2.93
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJ651 BCE65
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 9.53mm = 0.375 (3/8) inch
- Outside Diameter:
- 14.29mm = 0.563 (9/16) inch
- Width:
- 7.93mm = 0.312 (5/16) inch
Technical
Technical
| Fw | 3/8 inch |
|---|---|
| D | 9/16 inch |
| C | 5/16 inch |
| t2 max | 1mm |
| Dynamic Load C | 2220 N |
| Static Load C0 | 2010 N |
| Weight | 3.9 g |
