SKU: BAM.2812

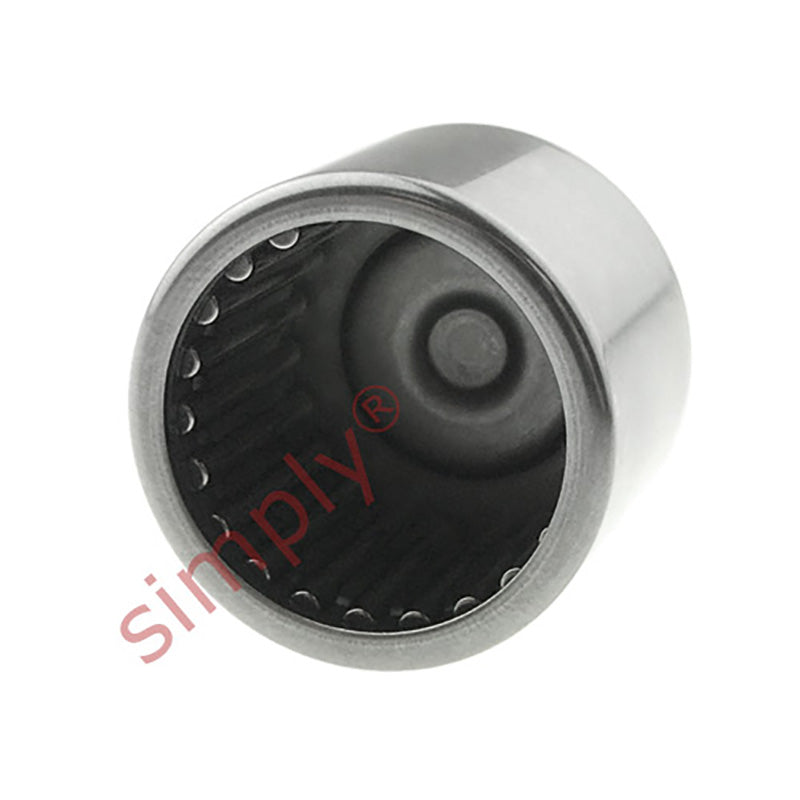

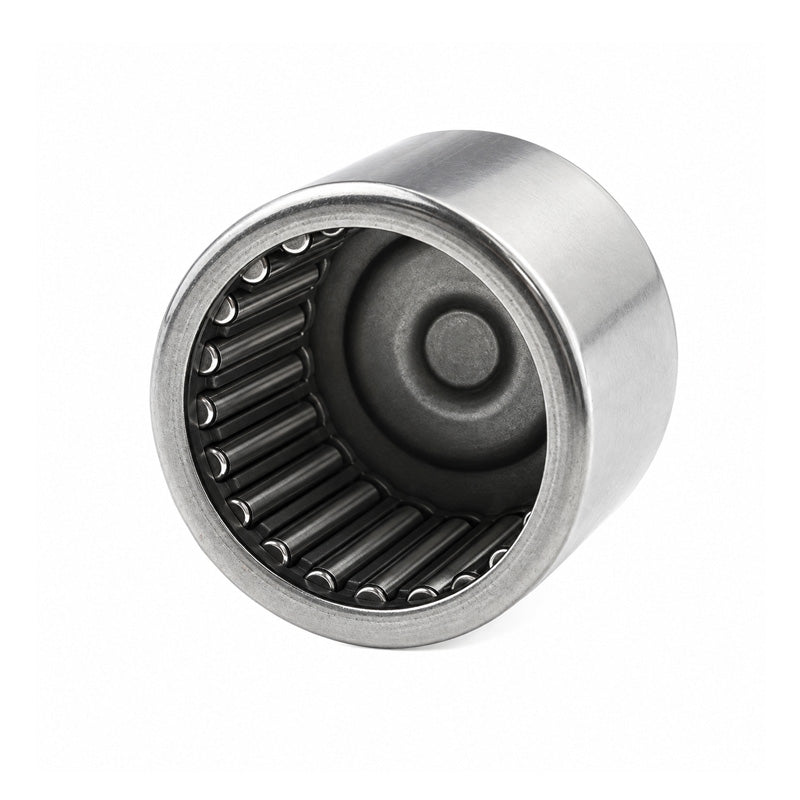

BAM2812 Imperial Closed End Needle Roller Bearing 1-3/4x2-1/8x3/4 inch
BAM2812 Imperial Closed End Needle Roller Bearing 1-3/4x2-1/8x3/4 inch
Regular price
£11.70
ex VAT£14.04inc. VAT
Regular price
Sale price
£11.70
ex VAT£14.04
inc. VAT
Equivalent to: MJ28121 BCE2812
In stock
Price Break
10+
£10.41
19+
£9.83
29+
£9.71
39+
£9.59
49+
£9.48
74+
£9.36
99+
£8.78
199+
£8.66
249+
£8.54
499+
£8.42
999+
£8.19
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJ28121 BCE2812
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Outside Diameter:
- 53.98mm = 2.125 (2-1/8) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Fw | 1-3/4 inch |
|---|---|
| D | 2-1/8 inch |
| C | 3/4 inch |
| t2 max | 2.8mm |
| Dynamic Load C | 25200 N |
| Static Load C0 | 44500 N |
| Weight | 79.5 g |
