SKU: BAM.2620

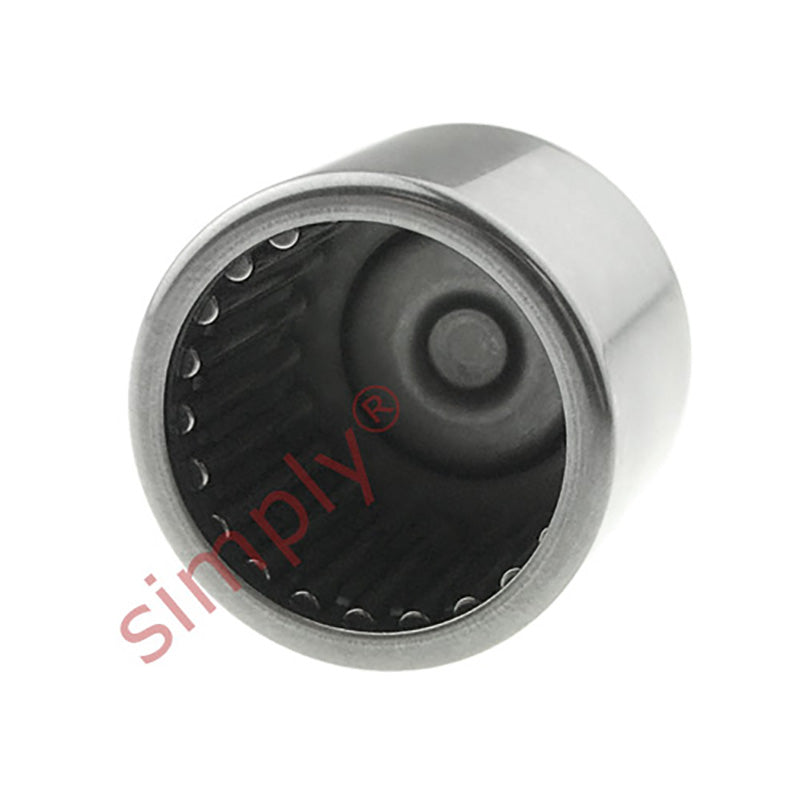

BAM2620 Imperial Closed End Needle Roller Bearing 1-5/8x2x1-1/4 inch
BAM2620 Imperial Closed End Needle Roller Bearing 1-5/8x2x1-1/4 inch
Regular price
£12.26
ex VAT£14.71inc. VAT
Regular price
Sale price
£12.26
ex VAT£14.71
inc. VAT
In stock
Price Break
10+
£10.91
19+
£10.30
29+
£10.18
39+
£10.05
49+
£9.93
74+
£9.81
99+
£9.20
199+
£9.07
249+
£8.95
499+
£8.83
999+
£8.58
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Outside Diameter:
- 50.8mm = 2 inch
- Width:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Fw | 1-5/8 inch |
|---|---|
| D | 2 inch |
| C | 1-1/4 inch |
| t2 max | 2.8mm |
| Dynamic Load C | 41400 N |
| Static Load C0 | 82100 N |
| Weight | 115 g |
