SKU: BAM.2110

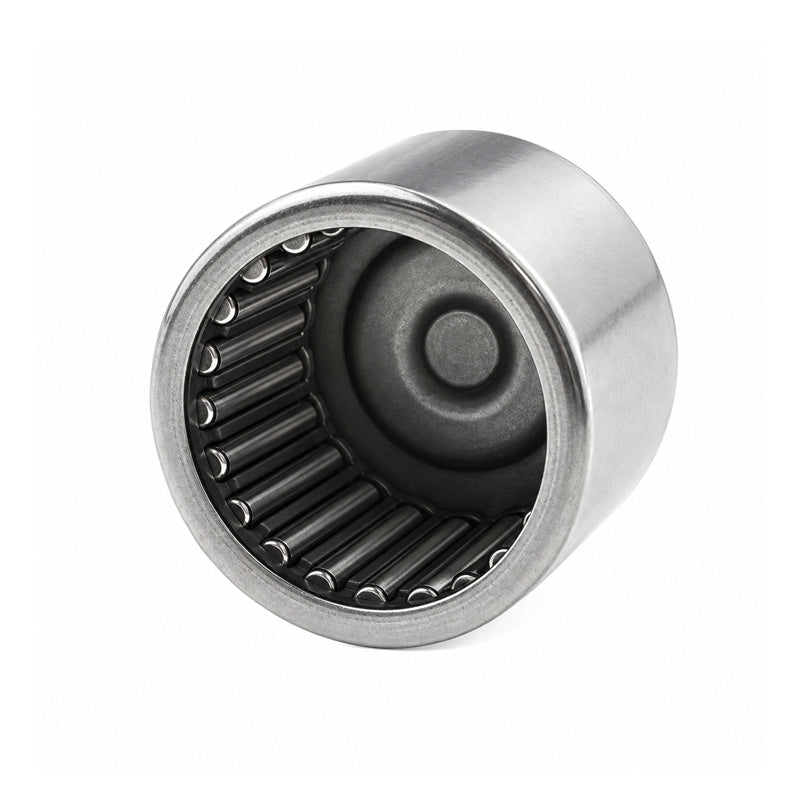

BAM2110 Imperial Closed End Needle Roller Bearing 1-5/16x1-5/8x5/8 inch
BAM2110 Imperial Closed End Needle Roller Bearing 1-5/16x1-5/8x5/8 inch
Regular price
£6.97
ex VAT£8.36inc. VAT
Regular price
Sale price
£6.97
ex VAT£8.36
inc. VAT
In stock
Price Break
10+
£6.20
19+
£5.85
29+
£5.79
39+
£5.72
49+
£5.65
74+
£5.58
99+
£5.23
199+
£5.16
249+
£5.09
499+
£5.02
999+
£4.88
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 33.33mm = 1.312 (1-5/16) inch
- Outside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Width:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Fw | 1-5/16 inch |
|---|---|
| D | 1-5/8 inch |
| C | 5/8 inch |
| t2 max | 2.8mm |
| Dynamic Load C | 15400 N |
| Static Load C0 | 23900 N |
| Weight | 41.5 g |
