SKU: BAM.1416

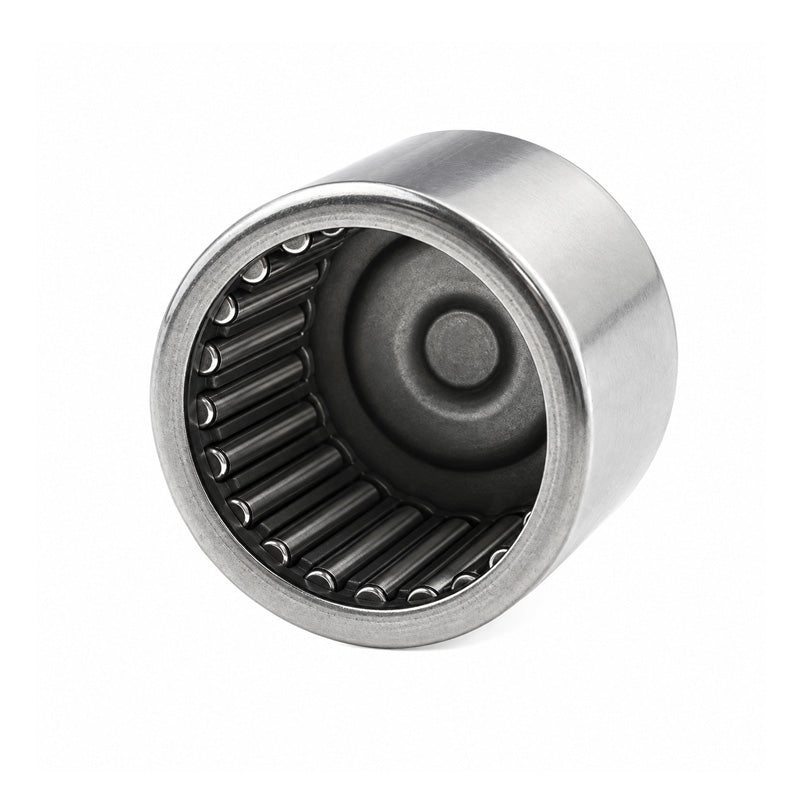

BAM1416 Imperial Closed End Needle Roller Bearing 7/8x1-1/8x1 inch
BAM1416 Imperial Closed End Needle Roller Bearing 7/8x1-1/8x1 inch
Regular price
£6.91
ex VAT£8.29inc. VAT
Regular price
Sale price
£6.91
ex VAT£8.29
inc. VAT
Equivalent to: MJ14161 BCE1416
In stock
Price Break
10+
£6.15
19+
£5.80
29+
£5.74
39+
£5.67
49+
£5.60
74+
£5.53
99+
£5.18
199+
£5.11
249+
£5.04
499+
£4.98
999+
£4.84
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJ14161 BCE1416
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Outside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Width:
- 25.4mm = 1 inch
Technical
Technical
| Fw | 7/8 inch |
|---|---|
| D | 1-1/8 inch |
| C | 1 inch |
| t2 max | 2.8mm |
| Dynamic Load C | 17600 N |
| Static Load C0 | 30500 N |
| Weight | 33.5 g |
