SKU: BAM.1210

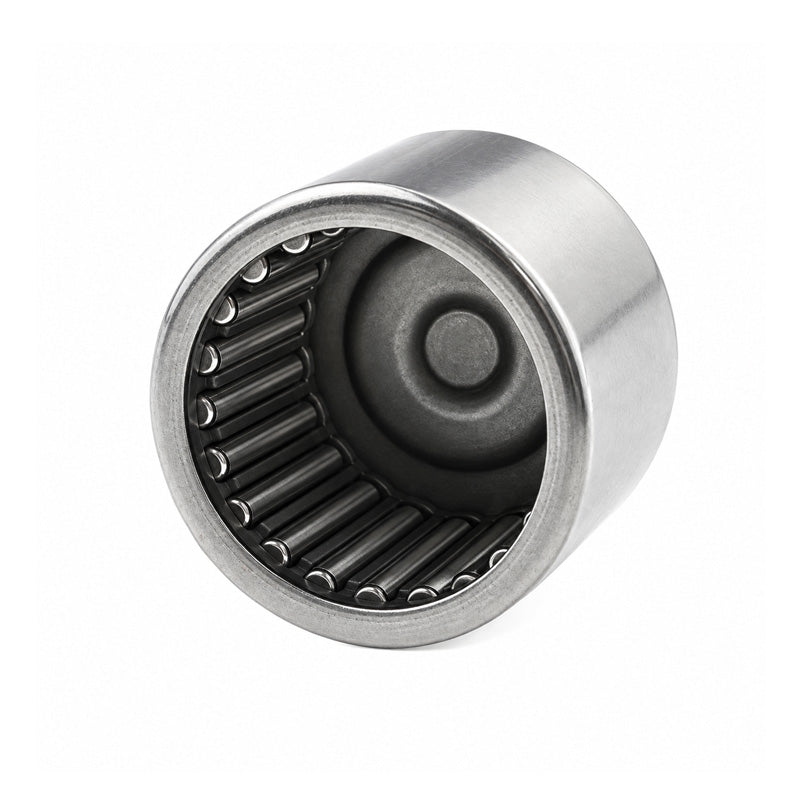

BAM1210 Imperial Closed End Needle Roller Bearing 3/4x1x5/8 inch
BAM1210 Imperial Closed End Needle Roller Bearing 3/4x1x5/8 inch
Regular price
£4.80
ex VAT£5.76inc. VAT
Regular price
Sale price
£4.80
ex VAT£5.76
inc. VAT
Equivalent to: MJ12101 BCE1210
In stock
Price Break
10+
£4.27
19+
£4.03
29+
£3.98
39+
£3.94
49+
£3.89
74+
£3.84
99+
£3.60
199+
£3.55
249+
£3.50
499+
£3.46
999+
£3.36
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJ12101 BCE1210
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 25.4mm = 1 inch
- Width:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Fw | 3/4 inch |
|---|---|
| D | 1 inch |
| C | 5/8 inch |
| t2 max | 1.3mm |
| Dynamic Load C | 9500 N |
| Static Load C0 | 13200 N |
| Weight | 18.6 g |
