SKU: AXW50-MB

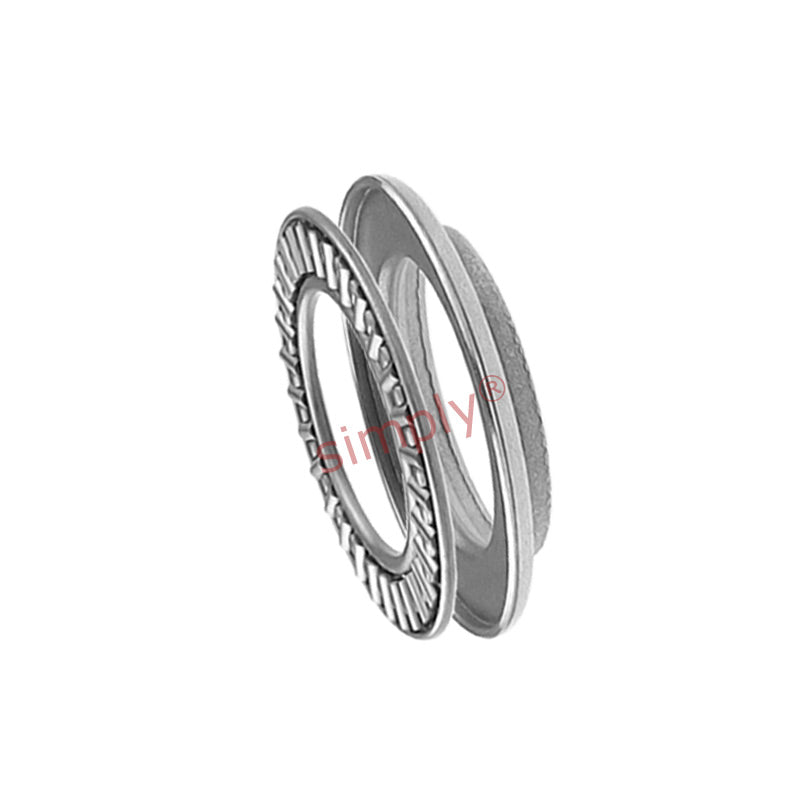

INA / SKF AXW50 Thrust Race with Centering Spigot 50x73x4.2mm
INA / SKF AXW50 Thrust Race with Centering Spigot 50x73x4.2mm
Regular price
£21.39
ex VAT£25.67inc. VAT
Regular price
Sale price
£21.39
ex VAT£25.67
inc. VAT
In stock
Price Break
10+
£19.03
19+
£17.96
29+
£17.75
39+
£17.54
49+
£17.32
74+
£17.11
99+
£16.04
199+
£15.83
249+
£15.61
499+
£15.40
999+
£14.97
Share this product
Description
Description
|
AXW Series Spigot Alignment Needle Thrust Bearings: Similar to the AXK needle thrust bearing this series has a centre spigot to enable it to be aligned in a bore of a housing, they can be combined with radial needle roller bearings to accommodate radial and axial loads simultaneously and are generally used in conjunction with the AS, LS and GS series washers. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 73mm
- Width:
- 4.2mm
Technical
Technical
| Inside diameter | 50mm |
|---|---|
| Outside diameter | 73mm |
| B | 4.2mm |
| B1 | 4.5mm |
| D1 | 58mm |
| Ea | 55mm |
| Eb | 68mm |
| Weight | 49 g |
| Dynamic load | 32000 N |
| Static load | 143000 N |
| Fatigue load limit | 14800 N |
| Limiting speed | 4700 rpm |
| Reference speed | 2160 rpm |
| Bearing washer to use | <a href="advanced_search_result.php?search_in_description=0&keywords=AS5070">Click Here AS5070 |
