SKU: AXK90120-EU

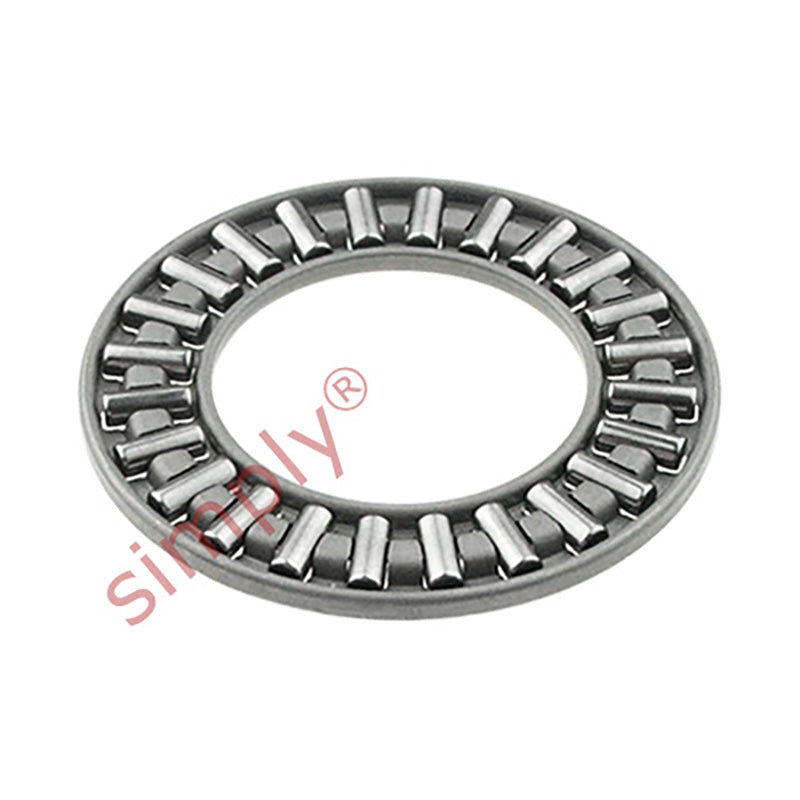

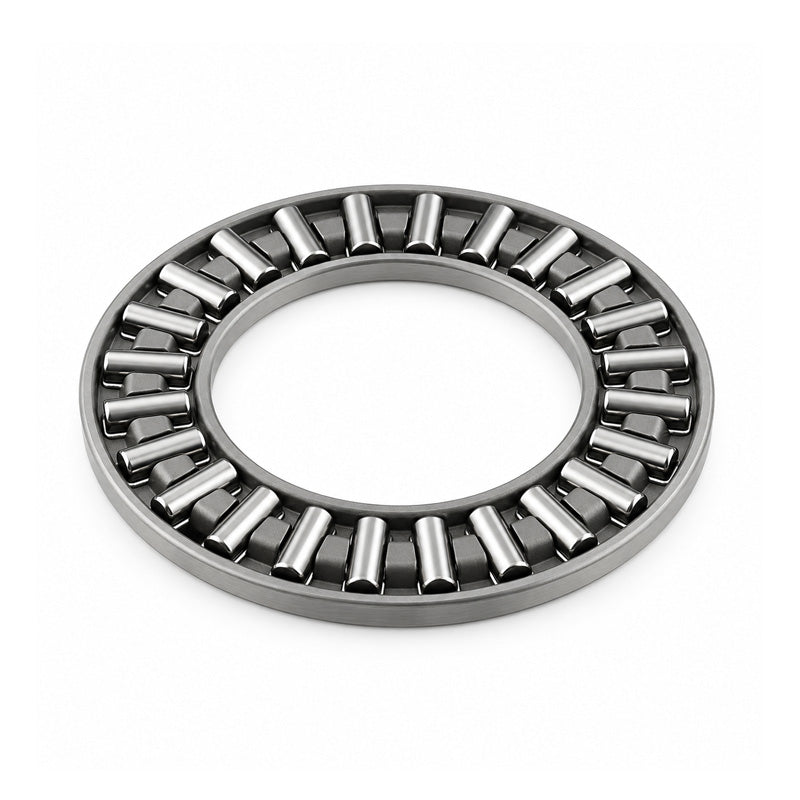

AXK90120 Budget Needle Roller Cage Only 90x120x4mm
AXK90120 Budget Needle Roller Cage Only 90x120x4mm
Regular price
£16.96
ex VAT£20.35inc. VAT
Regular price
Sale price
£16.96
ex VAT£20.35
inc. VAT
In stock
Price Break
10+
£15.10
19+
£14.25
29+
£14.08
39+
£13.91
49+
£13.74
74+
£13.57
99+
£12.72
199+
£12.55
249+
£12.38
499+
£12.21
999+
£11.87
Description
Description
|
Budget AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 120mm
- Width:
- 4mm
Technical
Technical
| d | 90mm |
|---|---|
| D | 120mm |
| Dw | 4mm |
| Ea | 94mm |
| Eb | 118mm |
| Dynamic load C | 65500 N |
| Static load Co | 405000 N |
| Fatigue load limit Pu | 48000 N |
| Speed in grease | 900 rpm |
| Speed in oil | 1300 rpm |
| Weight (Assembly) | 86 g |
| d1 | 120mm |
| D | 120mm |
| D1 | 92mm |
| B | 6.5mm |
| r1r2 min | 1mm |
| Weight LS GS WS | 235 g |
| Weight AS | 39 g |
| Raceway washer | LS90120 |
| Thrust washer | AS90120 |
| Shaft washer | WS81118 |
| Housing washer | GS81118 |
