SKU: AXK7095-MB

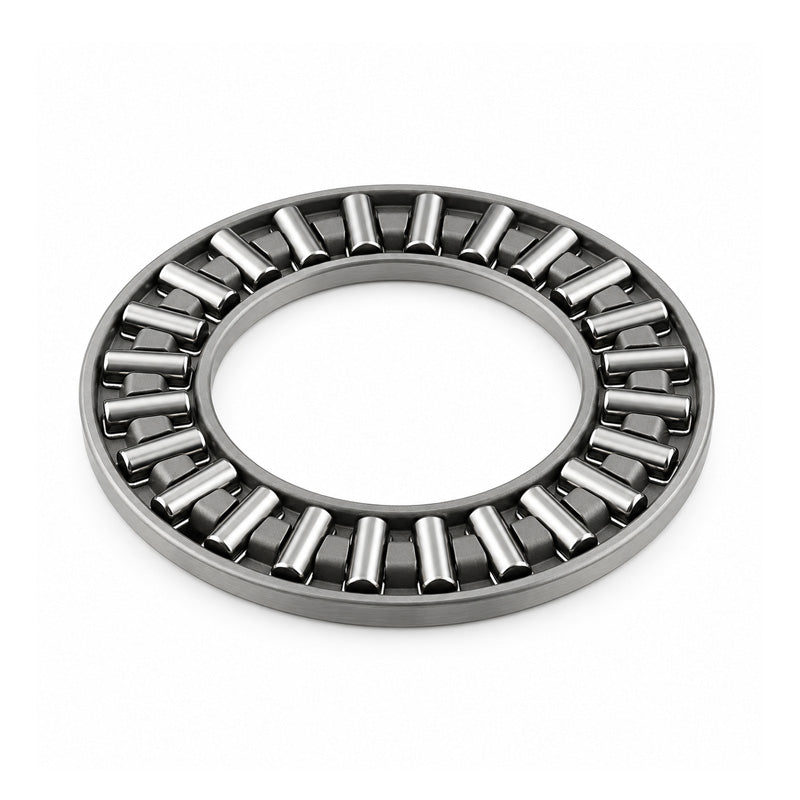

Major Brand AXK7095 Needle Roller Cage 70x95x4mm
Major Brand AXK7095 Needle Roller Cage 70x95x4mm
Regular price
£11.93
ex VAT£14.32inc. VAT
Regular price
Sale price
£11.93
ex VAT£14.32
inc. VAT
In stock
Price Break
10+
£10.62
19+
£10.02
29+
£9.90
39+
£9.78
49+
£9.66
74+
£9.54
99+
£8.95
199+
£8.83
249+
£8.71
499+
£8.59
999+
£8.35
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 95mm
- Width:
- 4mm

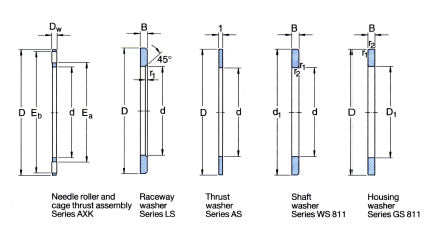

Technical
Technical
| d | 70mm |
|---|---|
| D | 95mm |
| Dw | 4mm |
| Ea | 74mm |
| Eb | 93mm |
| Dynamic load | 49000 N |
| Static load | 255000 N |
| Fatigue load limit Pu | 30500 N |
| Speed in grease | 1200 rpm |
| Speed in oil | 1700 rpm |
| Weight (assembly) | 60 g |
| d1 | 95mm |
| D | 95mm |
| D1 | 72mm |
| B | 5.25mm |
