SKU: AXK6590-MB

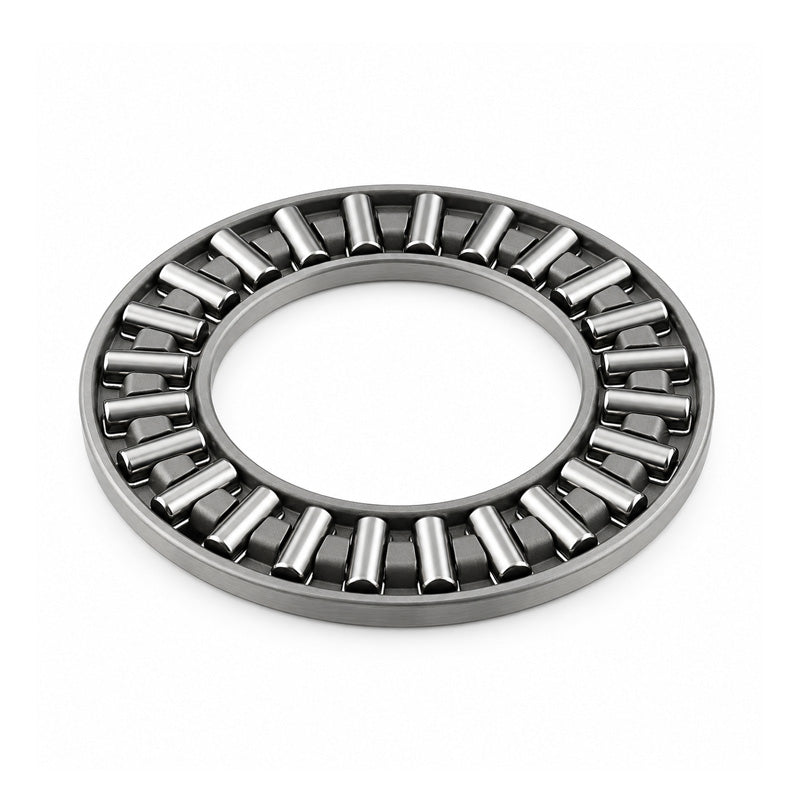

Major Brand AXK6590 Needle Roller Cage 65x90x3mm
Major Brand AXK6590 Needle Roller Cage 65x90x3mm
Regular price
£7.03
ex VAT£8.44inc. VAT
Regular price
Sale price
£7.03
ex VAT£8.44
inc. VAT
In stock
Price Break
10+
£6.26
19+
£5.91
29+
£5.83
39+
£5.76
49+
£5.69
74+
£5.62
99+
£5.27
199+
£5.20
249+
£5.13
499+
£5.06
999+
£4.92
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 90mm
- Width:
- 3mm
Technical
Technical
| d | 65mm |
|---|---|
| D | 90mm |
| Dw | 3mm |
| Ea | 70mm |
| Eb | 88mm |
| Dynamic load | 39000 N |
| Static load | 255000 N |
| Fatigue load limit Pu | 31000 N |
| Speed in grease | 1200 rpm |
| Speed in oil | 1700 rpm |
| Weight (assembly) | 35 g |
| d1 | 90mm |
| D | 90mm |
| D1 | 67mm |
| B | 5.25mm |
