SKU: AXK5578-MB

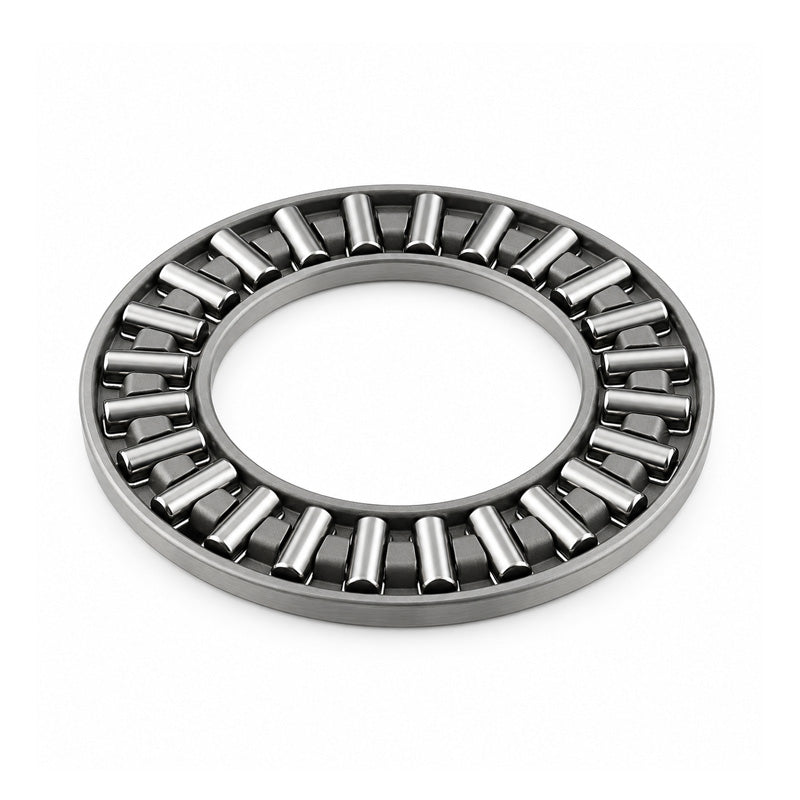

Major Brand AXK5578 Needle Roller Cage 55x78x3mm
Major Brand AXK5578 Needle Roller Cage 55x78x3mm
Regular price
£6.78
ex VAT£8.14inc. VAT
Regular price
Sale price
£6.78
ex VAT£8.14
inc. VAT
In stock
Price Break
10+
£6.04
19+
£5.70
29+
£5.63
39+
£5.56
49+
£5.50
74+
£5.43
99+
£5.09
199+
£5.02
249+
£4.95
499+
£4.89
999+
£4.75
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 78mm
- Width:
- 3mm
Technical
Technical
| d | 55mm |
|---|---|
| D | 78mm |
| Dw | 3mm |
| Ea | 60mm |
| Eb | 76mm |
| Dynamic load | 34500 N |
| Static load | 186000 N |
| Fatigue load limit Pu | 22400 N |
| Speed in grease | 1400 rpm |
| Speed in oil | 1900 rpm |
| Weight (assembly) | 28 g |
| d1 | 78mm |
| D | 78mm |
| D1 | 57mm |
| B | 5mm |
