SKU: AXK5578-EU

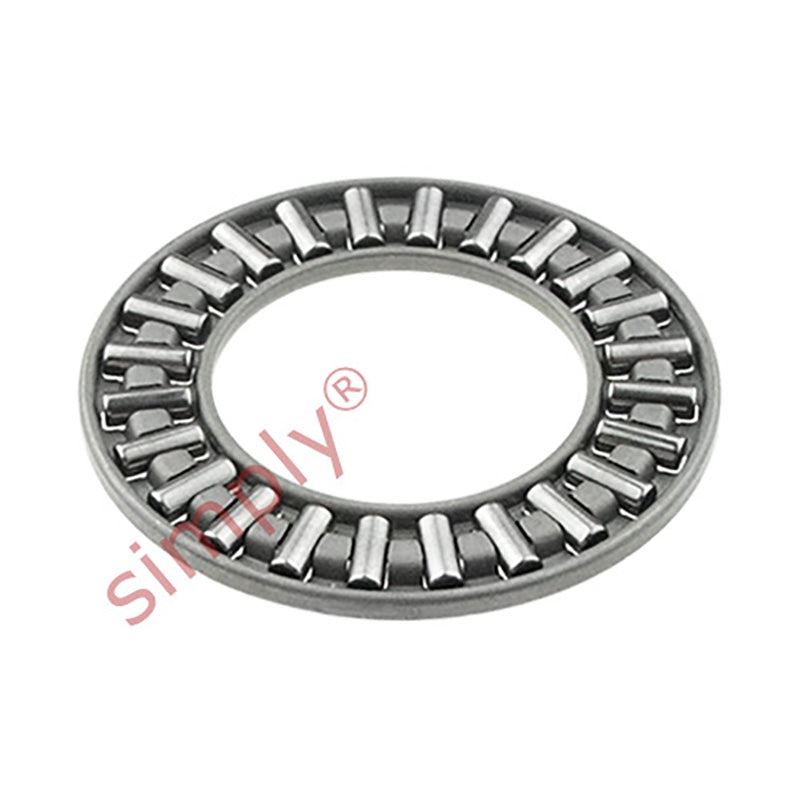

AXK5578 Budget Needle Roller Cage Only 55x78x3mm
AXK5578 Budget Needle Roller Cage Only 55x78x3mm
Regular price
£4.07
ex VAT£4.88inc. VAT
Regular price
Sale price
£4.07
ex VAT£4.88
inc. VAT
In stock
Price Break
10+
£3.62
19+
£3.42
29+
£3.38
39+
£3.34
49+
£3.30
74+
£3.26
99+
£3.05
199+
£3.01
249+
£2.97
499+
£2.93
999+
£2.85
Description
Description
|
Budget AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 78mm
- Width:
- 3mm
Technical
Technical
| d | 55mm |
|---|---|
| D | 78mm |
| Dw | 3mm |
| Ea | 60mm |
| Eb | 76mm |
| Dynamic load C | 34500 N |
| Static load Co | 186000 N |
| Fatigue load limit Pu | 22400 N |
| Speed in grease | 1400 rpm |
| Speed in oil | 1900 rpm |
| Weight (Assembly) | 28 g |
| d1 | 78mm |
| D | 78mm |
| D1 | 57mm |
| B | 5mm |
| r1r2 min | 0.6mm |
| Weight LS GS WS | 88 g |
| Weight AS | 18 g |
| Raceway washer | LS5578 |
| Thrust washer | AS5578 |
| Shaft washer | WS81111 |
| Housing washer | GS81111 |
